Installing Your Hardware 2–9
Publication 2755-6.3
8. Mount the base/charger unit.
5. Mounting the Power Supply
Place the power supply (Catalog No. 2755-HCP-D1) in an enclosure
near the base/charger unit and power receptacle. Make sure you can
plug the power supply into both the base/charger unit and the power
receptacle. Refer to page 2–10 for more information regarding
connecting the power supply to the base/charger unit and power
receptacle.

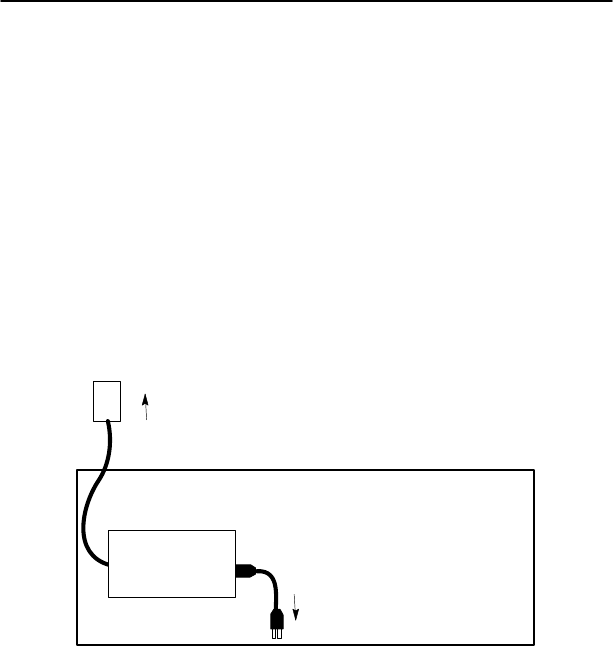

Power Supply
To Base/Charger Unit
To Power Receptacle
Enclosure
The total length of the power supply cable, from the power
receptacle to the base/charger unit, is 8 ft (2.44 m).
