2–6 Installing Your Hardware
Publication 2755-6.3

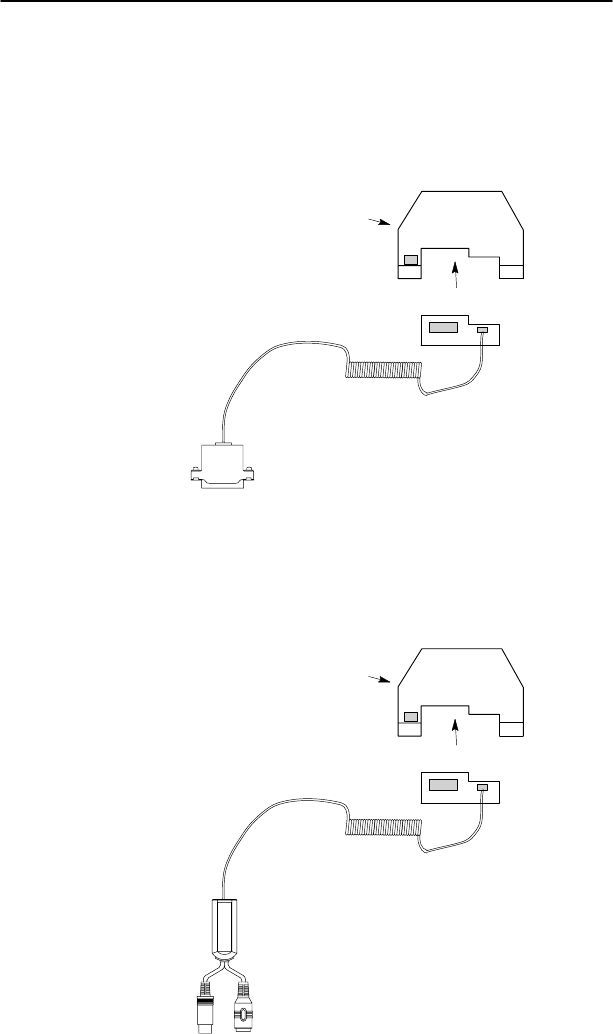

Connecting a RS-232C Cable to the Base/Charger Unit
To connect the RS-232C cable (Catalog Nos. 2755-HCC-BR1-06 or
-BR2-06) to the base/charger unit, plug the box end of the RS-232C
cable into the base/charger unit.
RS-232C Cable
Base/Charger Unit
To Base/Charger Unit
Connecting a Wedge Cable to the Base/Charger Unit
To connect the wedge cable (Catalog No. 2755-HCC-BP1-06,
-BP2-06, or -BV1-06) to the base/charger unit, plug the box end of
the wedge cable into the base/charger unit.
Wedge Cable
Base/Charger Unit
To Base/Charger Unit
