Publication 2711C-QS001F-EN-P - November 2010 99
Validate and Run Application Chapter 9

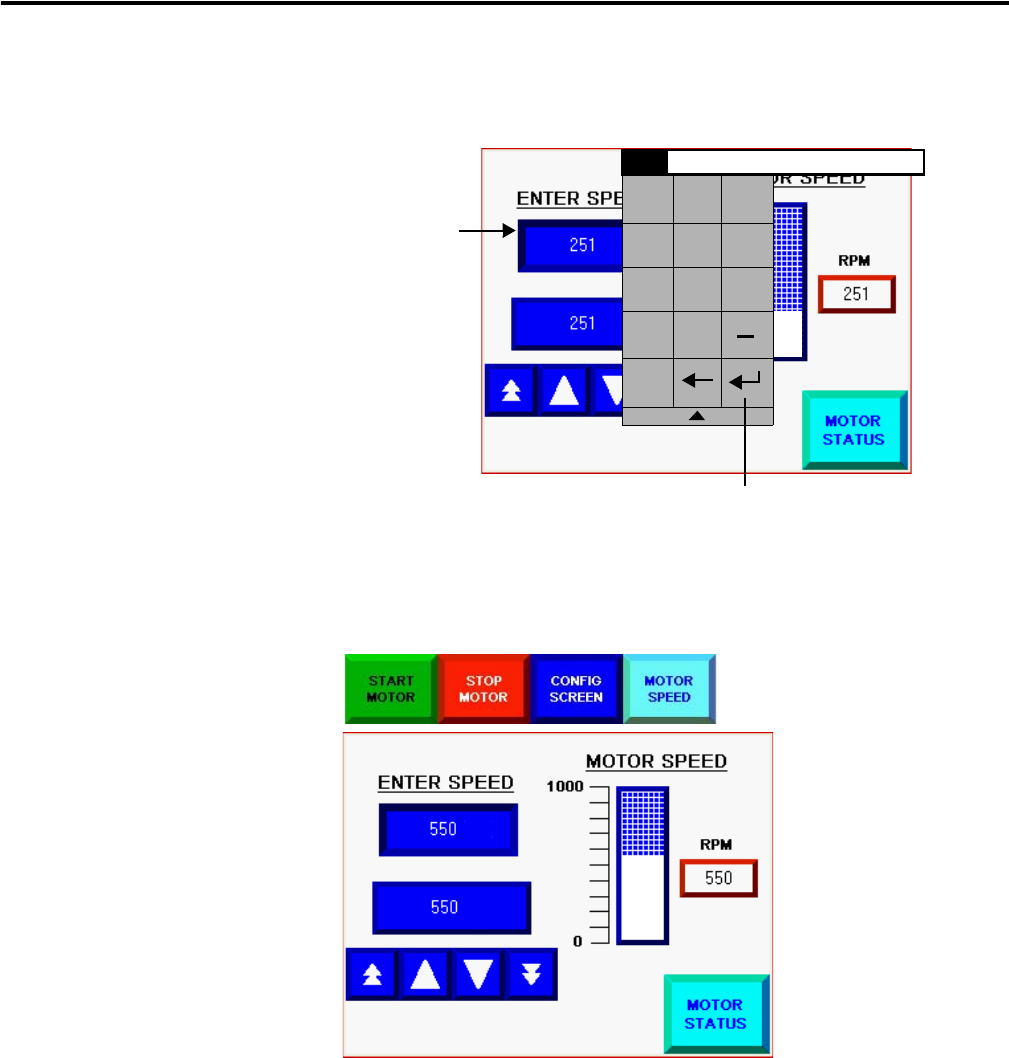

3. Press the numeric entry
object to enter a speed.
A numeric keypad opens
with the current speed
highlighted.
4. Enter 550 by pressing the
number keys.
5. Press the Enter key to save
the new speed and close the
keypad.
The speed is updated in
both numeric objects.
You must restart the
motor to see the new
speed in the numeric
display and bar graph.
6. Verify the new speed.
a. Press the Motor Status
button to return to the
Motor Status screen.
b. Press the Stop Motor
button.
c. Press the Start Motor
button.
d. Press the Motor Speed
button to return to the
Motor Speed screen.
The bar graph and
numeric display update to
the new speed.
78 9
45 6
12 3
0
Esc
Enter key
Numeric
Entry
251
