Validate and Run Application Chapter 9
Run the Application

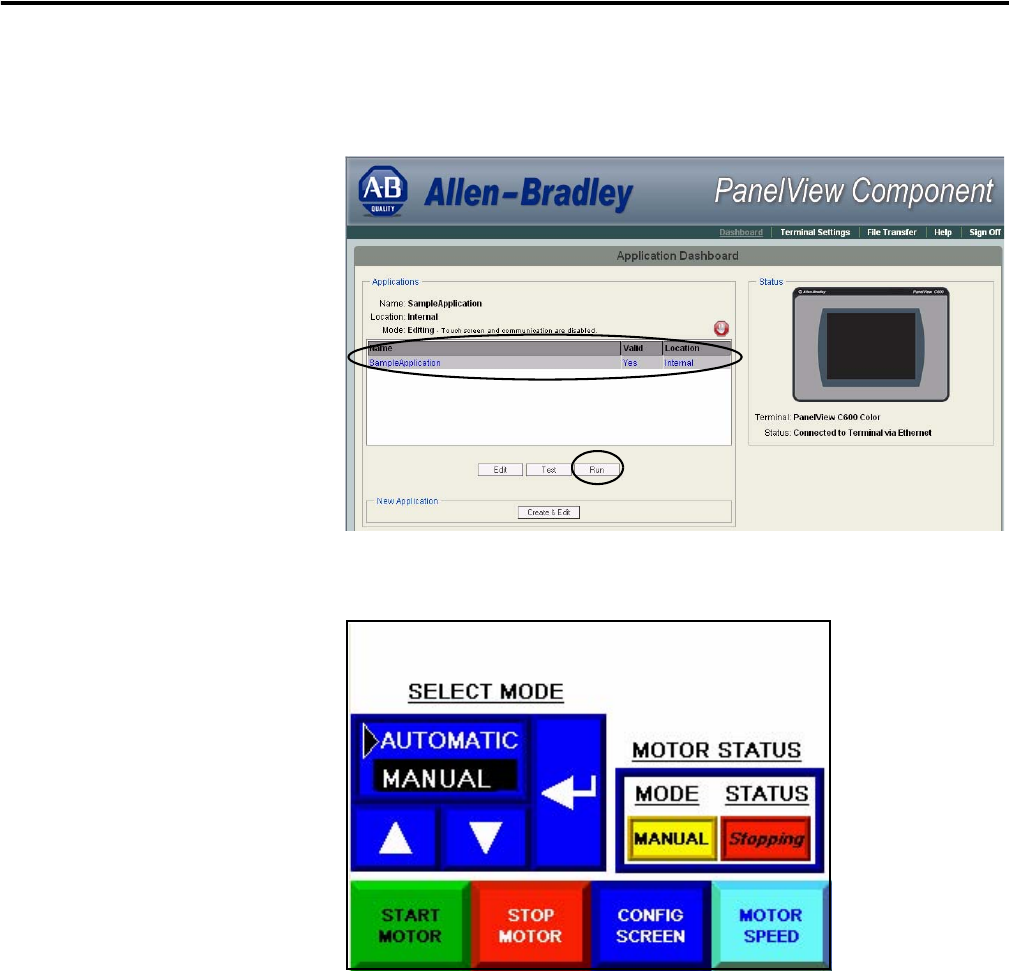

This topic shows you how to run the sample application from the PanelView Explorer Startup window.
1. Verify the PanelView
Explorer Startup window is
open.
2. Select the SampleApplication
just created.
3. Click the Run button.
While the application is
loading on the terminal,
you will see:
Loading Application...
The Motor Status screen
opens, which is the
startup screen.
When the motor is
stopped, the Status
indicator displays
Stopping.
4. Verify the motor is stopped
by pressing the Stop Motor
button.
