Create Alarms Chapter 8
Open the Alarms View
1. Click the Alarms tab to
open the Alarms view.
Create Alarms
Each alarm occupies a separate row in the Alarms view. The fields in each row define the properties of an
alarm. As alarms are created, the fields are populated with defaults from row 1.

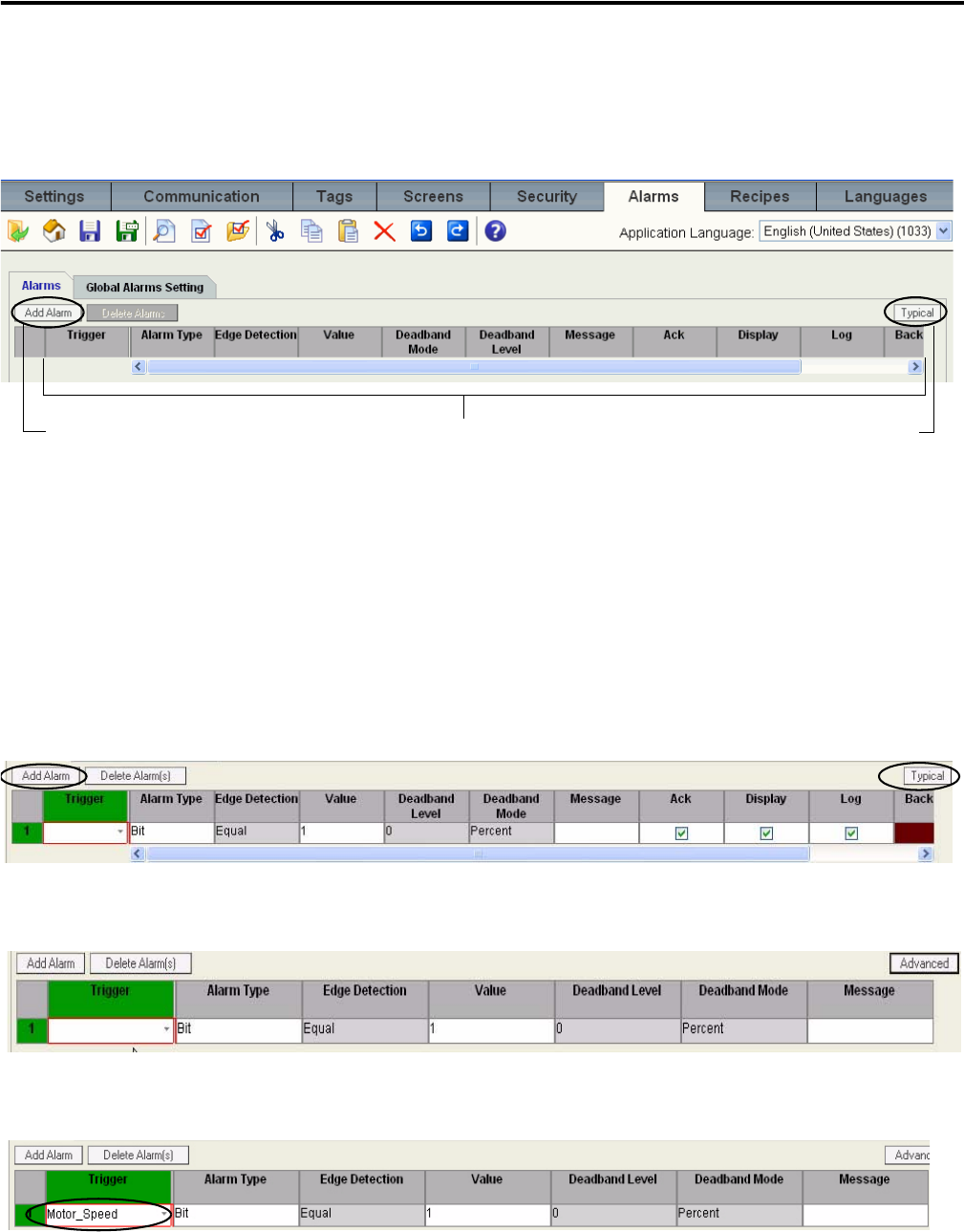

1. Click the Add Alarm
button.
2. Click the Typical button to
view fewer properties.
3. Click in the Trigger field and
select Motor_Speed.
Adds an alarm. Switches the view between typical
and advanced tag properties.
Alarm fields
