86 Publication 2711C-QS001F-EN-P - November 2010
Chapter 7 Create the Motor Speed Screen
Update the Motor Speed Screen Button
You need to update the Motor Speed screen button on the Motor Status screen so that it displays the correct
screen when the button is pressed. The Motor Speed screen did not exist when you first created the screen
button so you must go back and update the object.

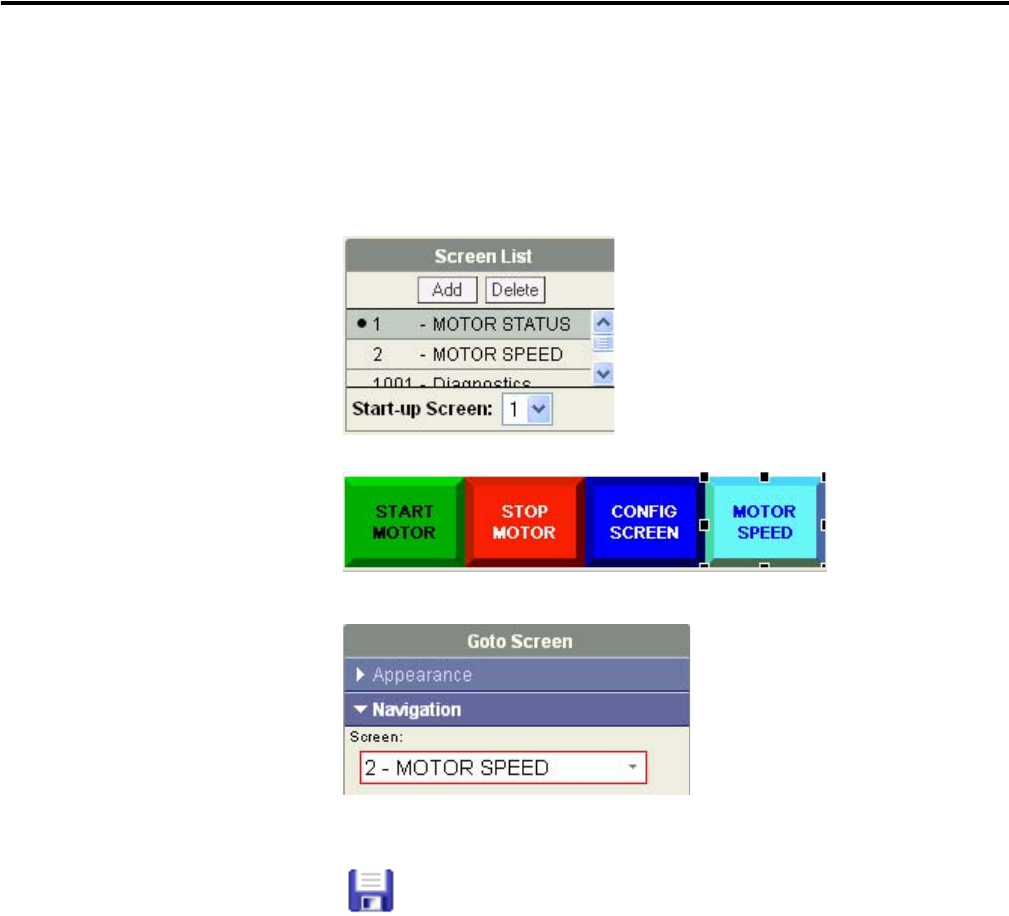

1. Click the MOTOR STATUS
screen in the Screen List to
open the screen.
2. Select the MOTOR SPEED
button.
3. Open the Navigation tab of
the Properties panel.
4. In the Screen Number field,
select 2 - MOTOR SPEED.
The button will now
display the correct screen
when pressed.
5. Click the Save icon to save
the application.
