Chapter 7 Create the Motor Speed Screen
Create Text Labels for the Scale

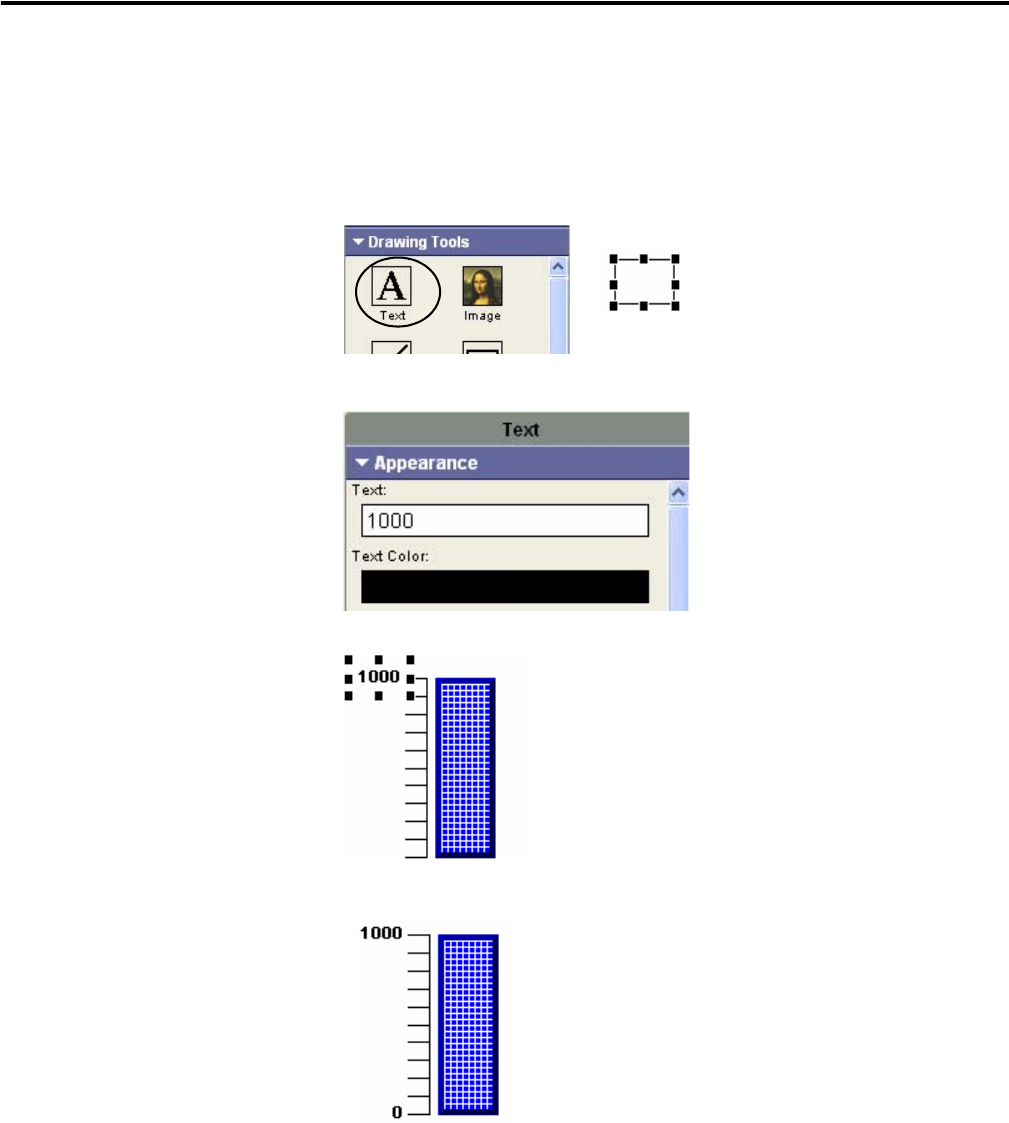

1. Open the Drawing Tools tab
of the object palette.
2. Drag the Text tool next to
the linear scale.
3. On the Appearance tab of
the Properties panel:
a. Type 1000 in the Text
field.
b. Set the Border Style to
None.
Scroll down to see all the
properties.
4. Resize the text object and
place it next to the top
tick-mark of the scale.
5. Press Ctrl+C then Ctrl+V to
copy and paste the text
object.
6. Move the pasted object to
align with the bottom
tick-mark of the scale.
7. On the Appearance tab,
replace 1000 with 0 in the
Text field and press Enter.
8. Move or resize the text label
as needed.
