66 Publication 2711C-QS001F-EN-P - November 2010
Chapter 6 Create the Motor Status Screen

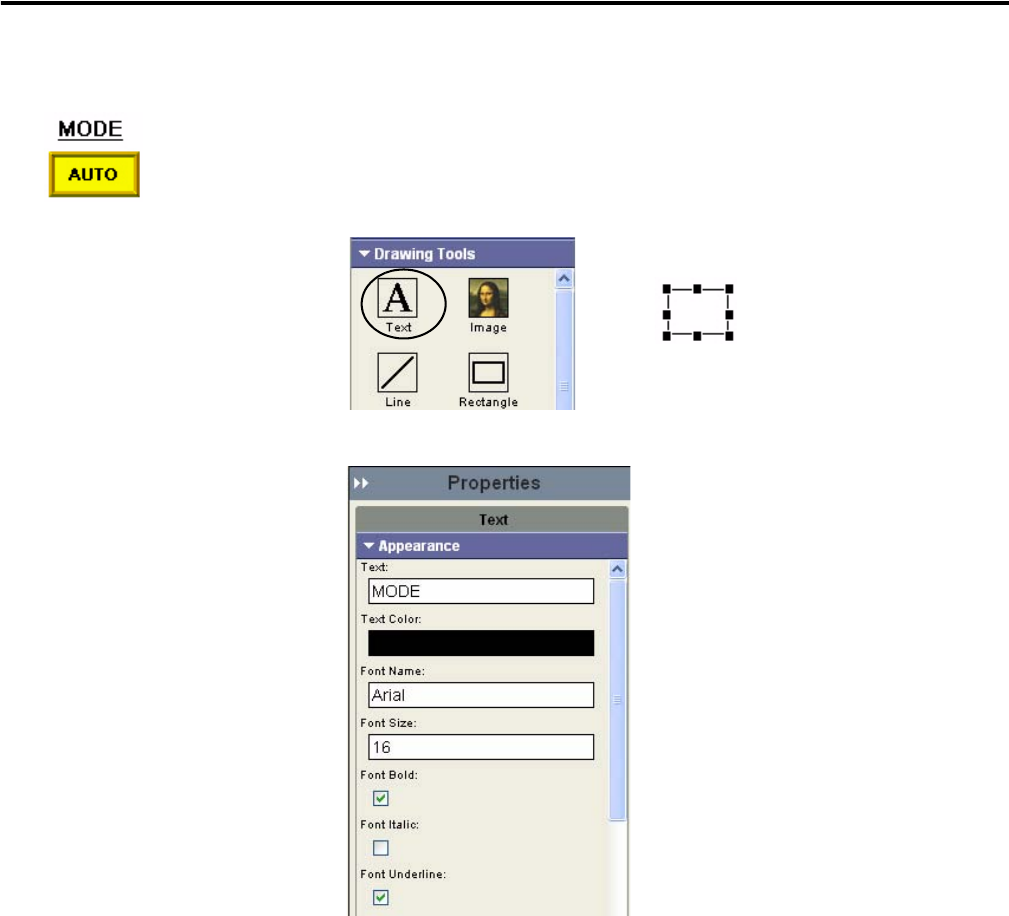

Create a Heading for the Mode Indicator
1. Open the Drawing Tools tab
of the object palette.
2. Drag the Text tool above the
Mode indicator.
3. On the Appearance tab:
a. Type MODE in the Text
box.
b. Set the Font Size to 16.
c. Check the Font Underline
checkbox.
d. Set the Border Style to
None.
Scroll down to see all the
properties.
4. Resize the object to fit the
text.
