Publication 2711C-QS001F-EN-P - November 2010 63
Create the Motor Status Screen Chapter 6

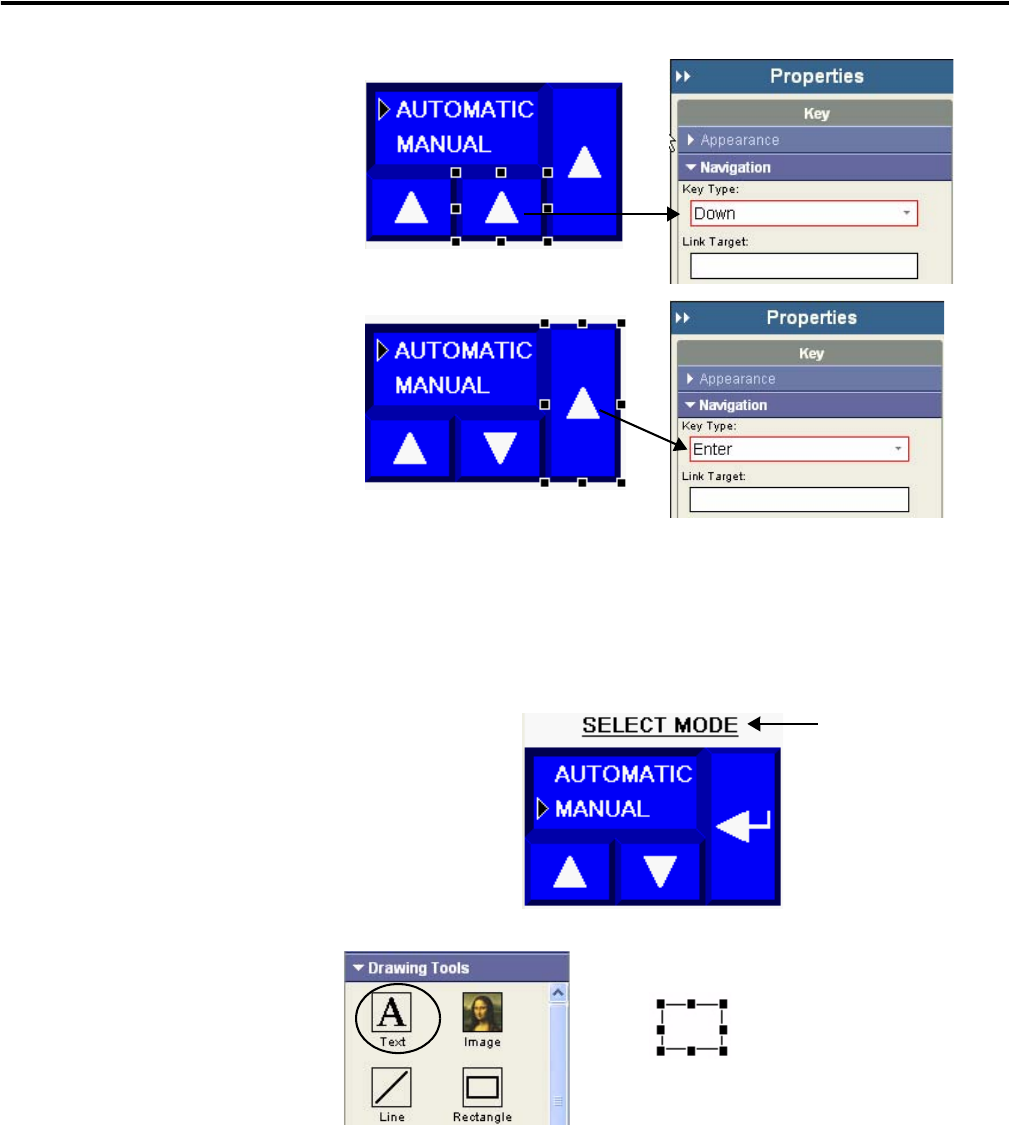

6. Modify the key type of the
pasted key objects.
a. Select one of the pasted
key objects.
b. Open the Navigation tab
of the Properties panel.
c. Select Down as the Key
Type.
d. Select the other pasted
key object.
e. Select Enter as the Key
Type.
7. Verify the view of the objects
on the terminal.
Create a Heading for the Motor Control List Selector
1. Open the Drawing Tools tab
of the object palette.
2. Drag the Text tool above the
list selector object.
