62 Publication 2711C-QS001F-EN-P - November 2010
Chapter 6 Create the Motor Status Screen

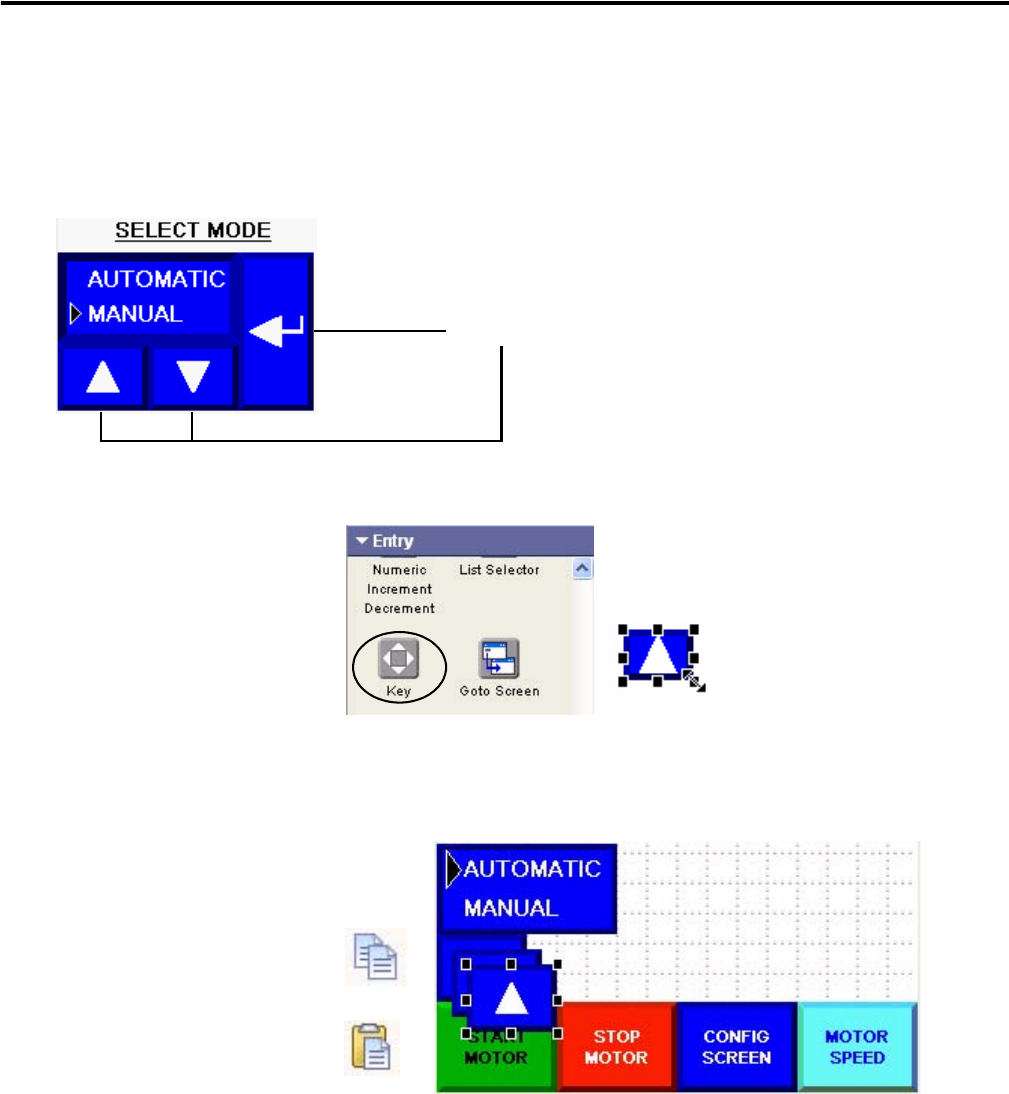

Create List Keys for the Motor Control List Selector
Terminals with a touch screen, or without an attached keyboard, require the up and down list keys on the
screen to move the cursor in the list, and the Enter key to make a selection.
1. Open the Entry tab of the
object palette and scroll
down until you see the Key
object.
2. Drag the Key object below
the list selector and to the
left.
3. Resize the object.
4. Make two copies of the Key
object.
a. Select the key object.
b. Click the Copy tool on the
application toolbar or
press Ctrl+C.
c. Click the Paste tool twice
to paste two copies of the
object or press Ctrl+V
twice.
5. Move the pasted objects as
shown in the image above
and resize.
List keys
