58 Publication 2711C-QS001F-EN-P - November 2010
Chapter 6 Create the Motor Status Screen
Create a Goto Config Button
The Goto Config button lets you access the configuration mode screens of the terminal when the button is
pressed at runtime.

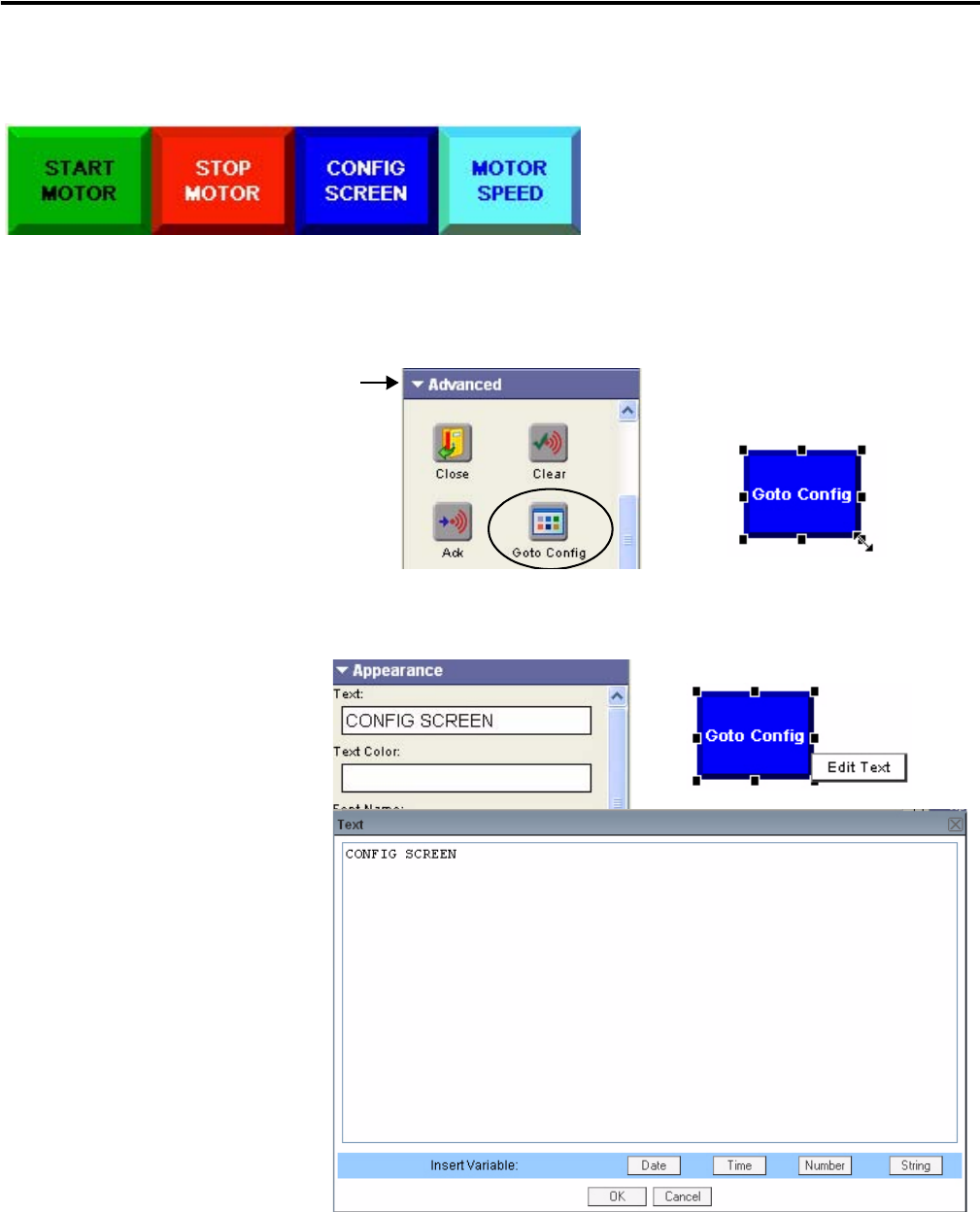

1. Click the Advanced cursor
on the object palette and
scroll down until you see the
Goto Config button.
2. Drag the Goto Config
button to the left of the
Motor Speed button and
resize.
3. On the Appearance tab of
the Properties panel:
a. Change Goto Config to
CONFIG SCREEN in
the Text field.
b. Accept the default colors
for the object.
c. Change the Border Width
to 6.
Another way to edit text is to
double-click the object or
right-click the object and
select Edit Text to open the
text editor.
