54 Publication 2711C-QS001F-EN-P - November 2010
Chapter 6 Create the Motor Status Screen
9. Resize object if needed.
An asterisk * appears if
the text exceeds the size
of the object.

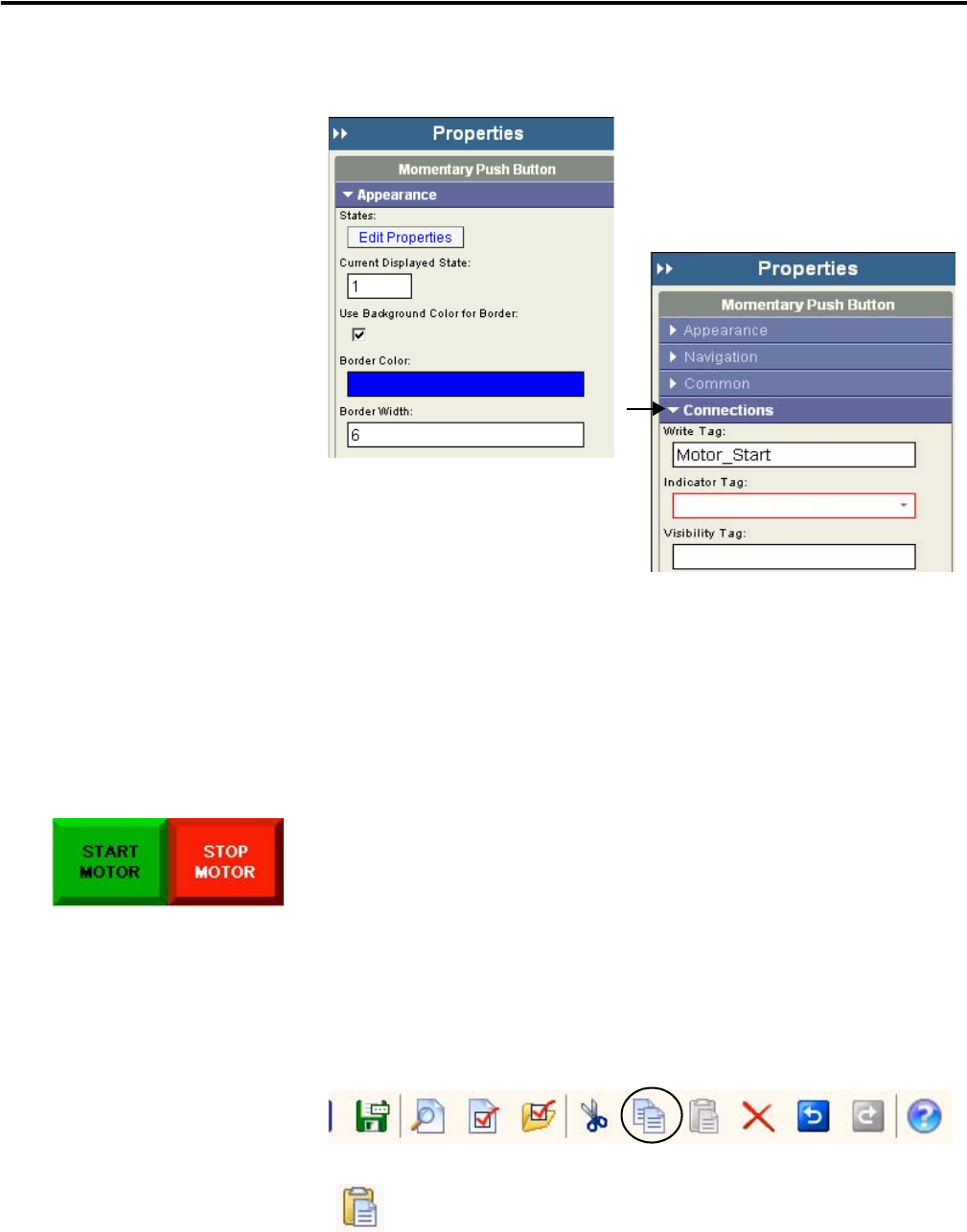

10. On the Appearance tab, set
the Border Width to 6.
11. Assign tags to the Start
Motor push button.
a. Make sure the push
button is selected.
b. Click the cursor next to
the Connections tab on
the Properties panel.
c. Click in the Write Tag
field and select
Motor_Start.
12. Verify the view the object on
the terminal.
Create the Stop Motor Push Button
The Stop Motor push button is created using a copy and paste operation.
1. Verify the Start Motor push
button is selected.
2. Click the Copy icon on the
Application toolbar or press
the Ctrl+C keys.
3. Click the Paste icon on the
toolbar or press the Ctrl+V
keys.
