Publication 2711C-QS001F-EN-P - November 2010 35
Open a New Application Chapter 3
Modify Application Settings
The Settings tab contains design-time settings that are global to an application. Changes made on this tab
affect all screens in the application.

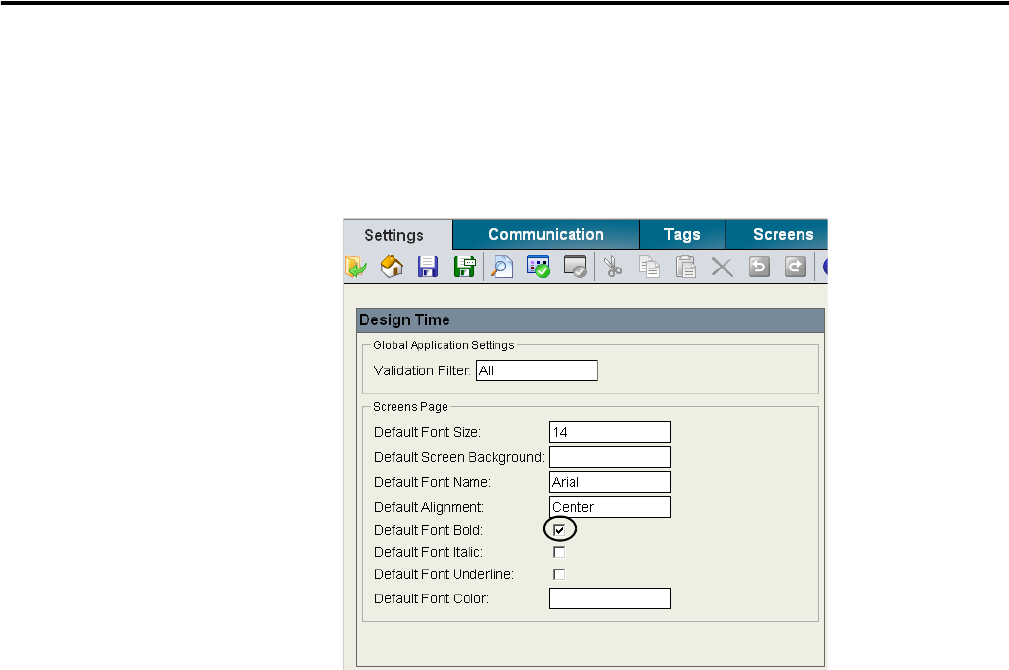

1. Click the Settings tab.
2. Check the Default Font Bold
checkbox.
All text in the application
will be bold.
You are now ready to configure runtime communication for the application.
