Publication 2711C-QS001F-EN-P - November 2010 107
Other Terminal Operations Appendix A

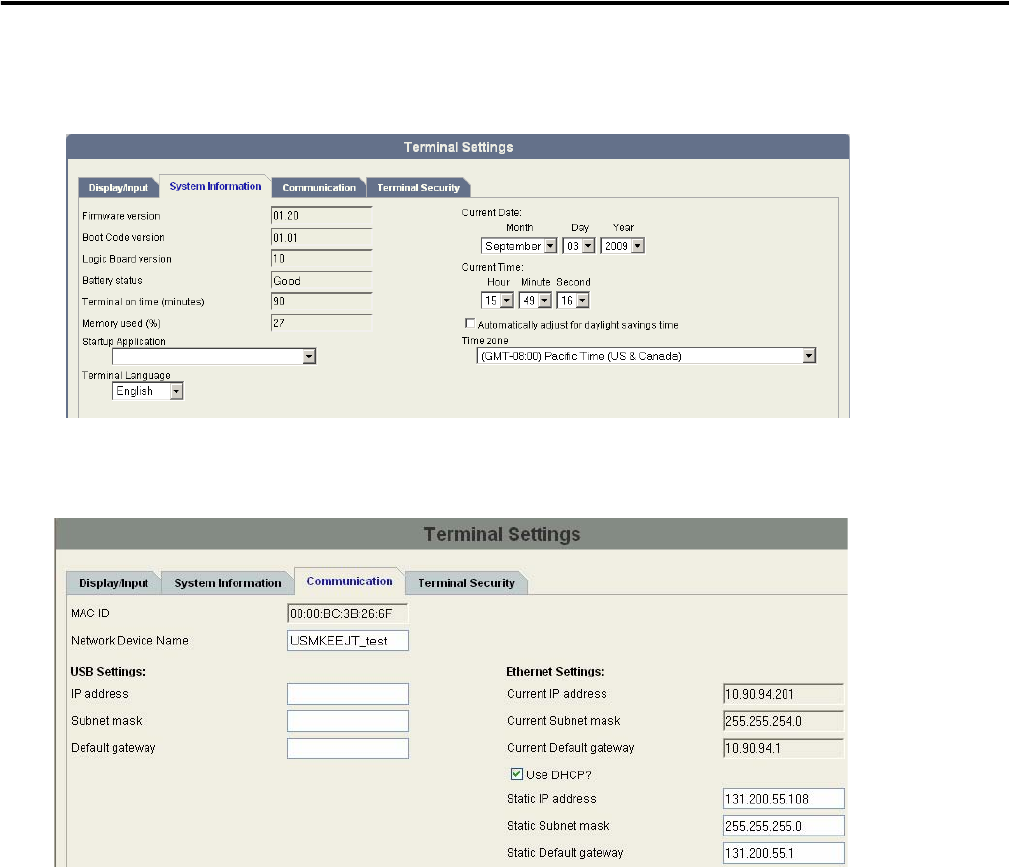

• view and change the time and date settings on the terminal, including setting your time zone and
automatically adjusting for daylight saving time.
From the Communication tab, you can change the IP address of the USB port or the Ethernet port of
your terminal.
From the Terminal Security tab, you can:
• enable terminal security.
• change the user name and password that are used to secure the terminal from unauthorized access.
