Other Terminal Operations Appendix A

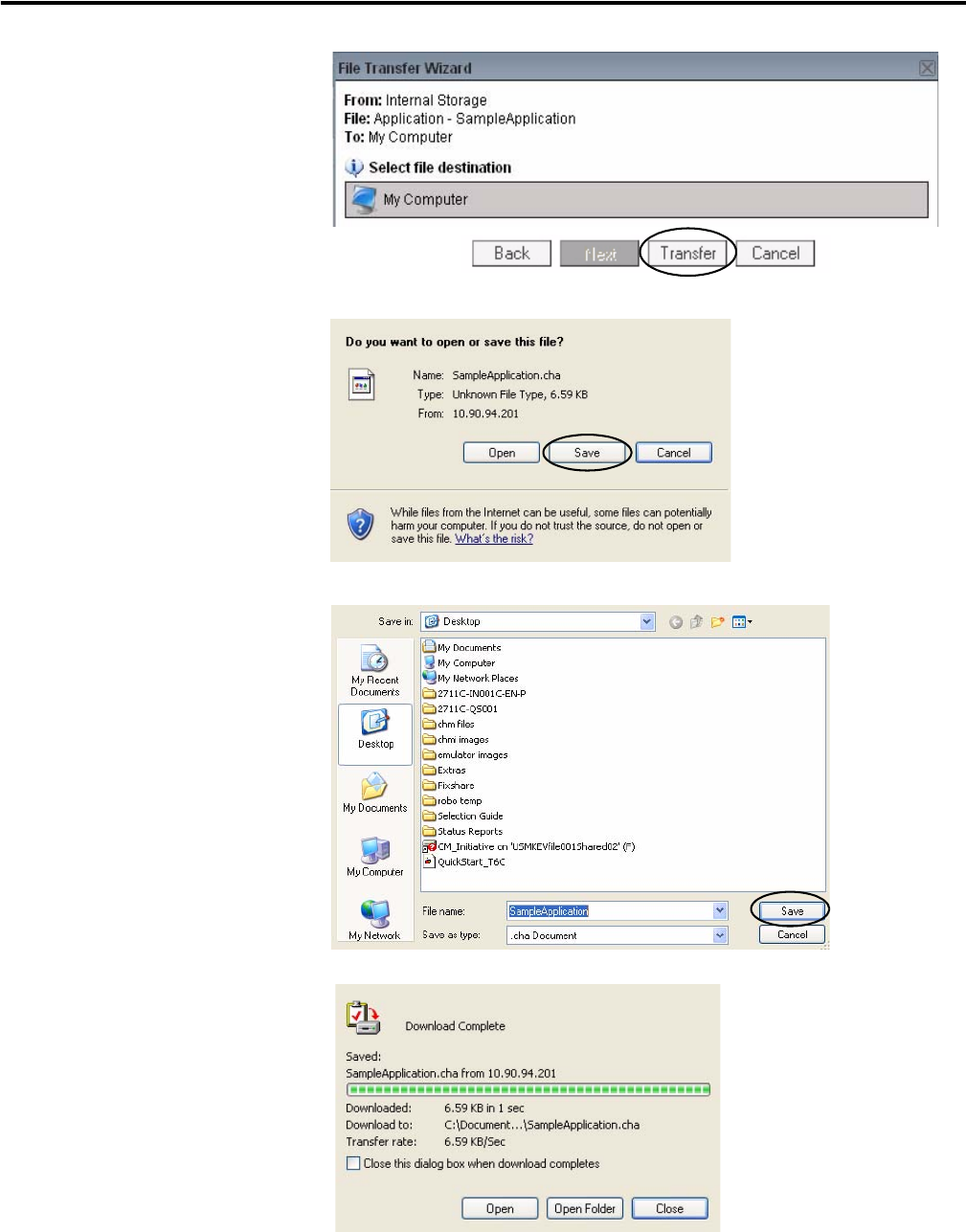

6. Select My Computer as the
destination for the transfer
and click Transfer.
USB Storage or SD Storage
will appear if either media is
loaded in the terminal.
7. Click Save to save the file to
your desktop.
8. Select the location or folder
where you want to save the
application and click Save.
9. When the download is
complete, click Close.
