104 Publication 2711C-QS001F-EN-P - November 2010
Appendix A Other Terminal Operations
Follow these steps to copy an application from internal storage of the terminal to your computer. For details
on how to transfer other files, refer to the PanelView Explorer help or the PanelView Component Terminal
user manual, publication 2711C-UM001.

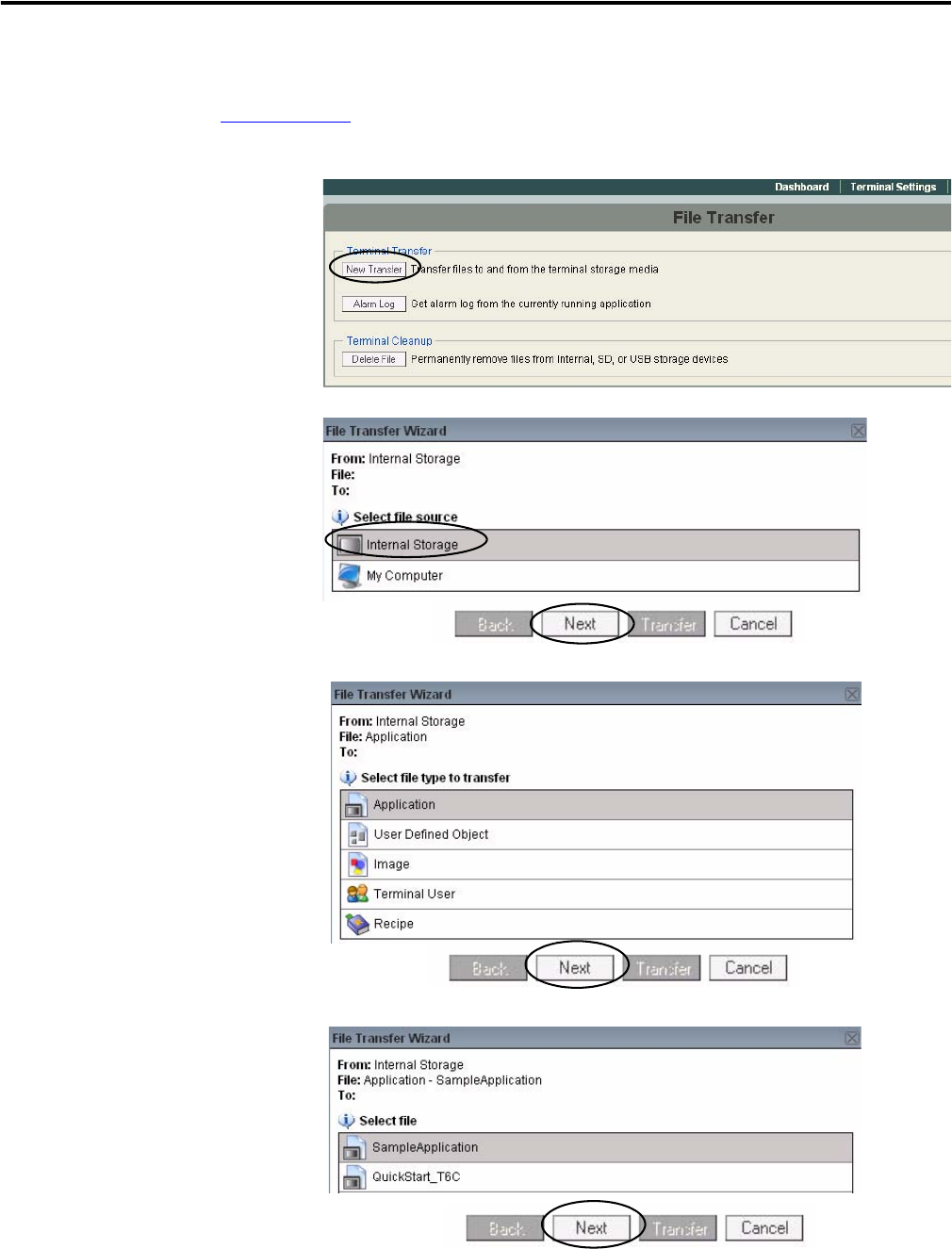

1. Click the File Transfer Link
from the Startup window.
2. Click the New Transfer
Button.
Notice that you can also
delete files from terminal
storage.
3. Select Internal Storage and
click Next.
This is the location of the file
you want to transfer.
4. Select Application as the file
type to transfer and click
Next.
5. Select the application you
want to transfer and click
Next.
