100 Publication 2711C-QS001F-EN-P - November 2010
Chapter 9 Validate and Run Application

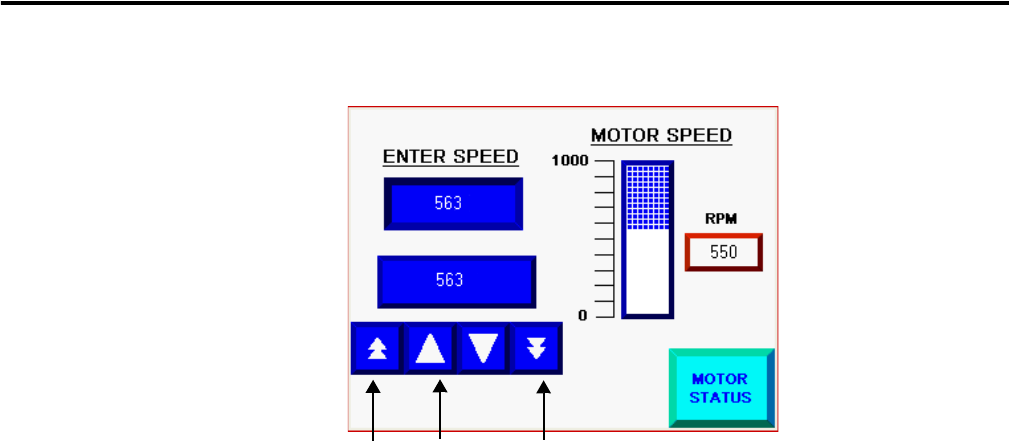

7. Update the motor speed
in steps using the
numeric increment
decrement object.
a. Press the page up key
twice to increase the
speed by 20 rpm.
b. Press the up key three
times to increase the
speed by 3 rpm.
c. Press the page down
key once to decrease
the speed by 10 rpm.
The speed value is 563.
8. Repeat step 5 to verify the
new motor speed is
updated in the numeric
display and bar graph.
9. Press the Motor Status
button to return to the
Motor Status screen.
Page Up
Page Down
Up
