3-10 InView Communication Module Connections
Make DH+ Connections
Use the Belden 9463 twin axial cable (1770-CD) to connect a DH+
InView communication module to the DH+ link.
You can connect a DH+ link in 2 ways.
• Trunk line/drop line - from the drop line to the connector screw
terminals on the DH+ connectors of the processor.
• Daisy chain - to the connector screw terminals on the DH+
connectors on the processor.
Follow these guidelines when installing DH+ communication links.
• Do not exceed these cable lengths:
– Trunk line-cable length: 3,048 m (10,000 cable ft)
– Drop-cable length: 30.4 m (100 cable ft)
• Do not connect more than 64 stations on a single DH+ link

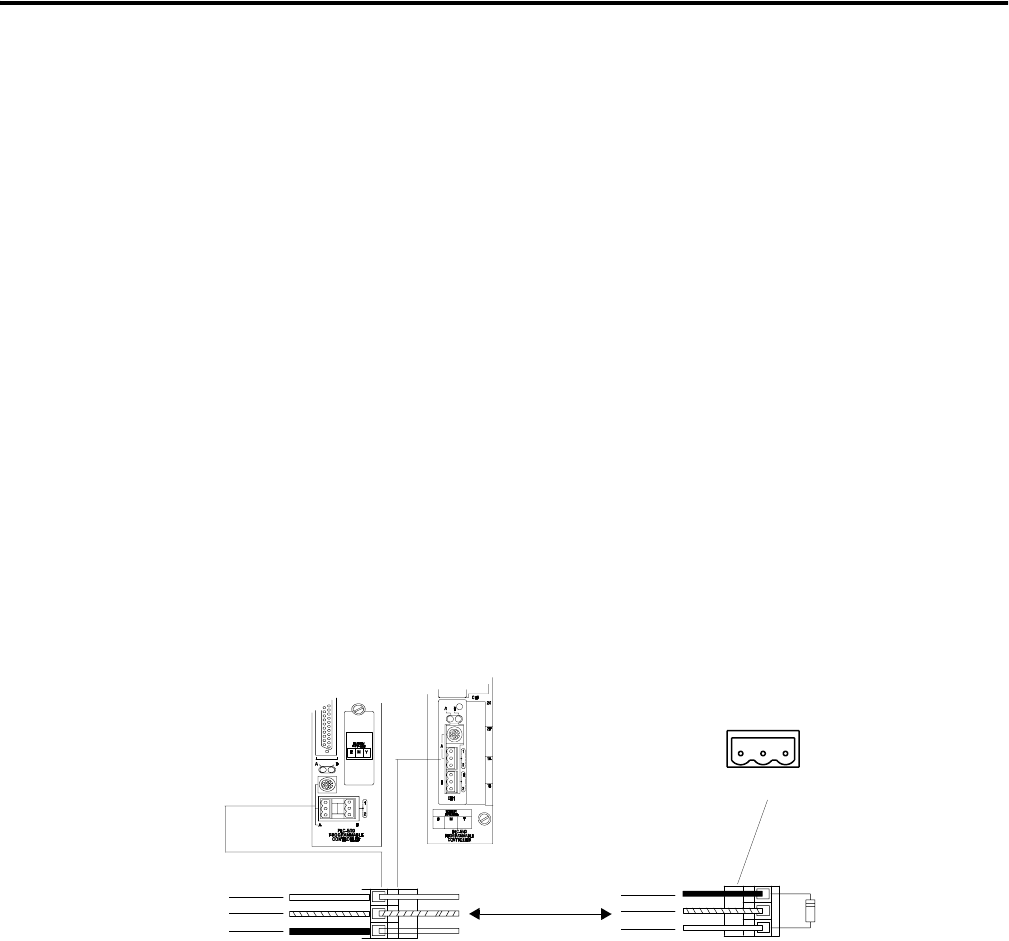

DH+ Connections
Clear 1
Shield SH
Blue 2
Blue 2
Shield SH
Clear 1
1770-CD (Belden
Cable)
PLC 5/11, -5/20, 5/26 Processor
PLC-5/30, -5/40, -5/46, -5/40L, - 5/60, -5/60C
-5/60L, -5/80, 5/80C, -5/86 Processor
InView DH+ Connector
82 or 150 Ohm Resistor
