12 Rockwell Automation Publication PFLEX-UM003B-EN-P - July 2012
Installation and Wiring
2. Remove the protective plug covering the PowerFlex 40P Safe Torque
Off connector shown in Figure 1.

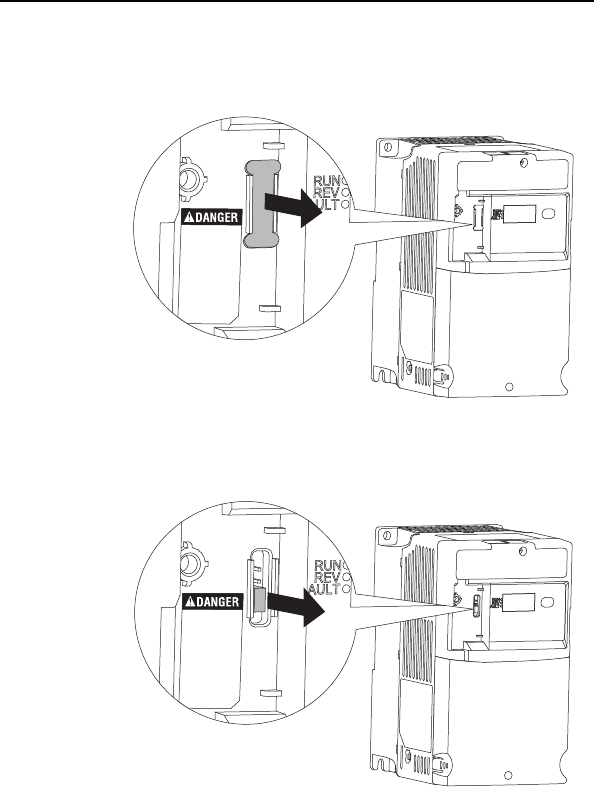

Figure 1 - PowerFlex 40P Protective Plug
3. Remove the PowerFlex 40P Safe Torque Off connection jumper
shown in Figure 2.
Figure 2 - PowerFlex 40P Safe Torque Off Connection Jumper Location
