3-2 Configuring the Adapter
Adapter parameters cannot be accessed using the integral keypad on a
PowerFlex 4-Class drive. You must use Drive Explorer or
DriveExecutive software, or an optional, external PowerFlex 4-Class
HIM (22-HIM-A3 or 22-HIM-C2S). Basic steps to access parameters in
the adapter are shown in Table 3.A
. For additional HIM information,
refer to the PowerFlex 4-Class HIM Quick Reference (publication
22HIM-QR001).
Important: The optional, external PowerFlex 4-Class HIM will only
operate when the adapter is set to Single mode. To access
adapter parameters when the adapter is set to Multi-Drive
mode, you must use DriveExplorer or DriveExecutive.
Using the Optional, External PowerFlex 4-Class HIM

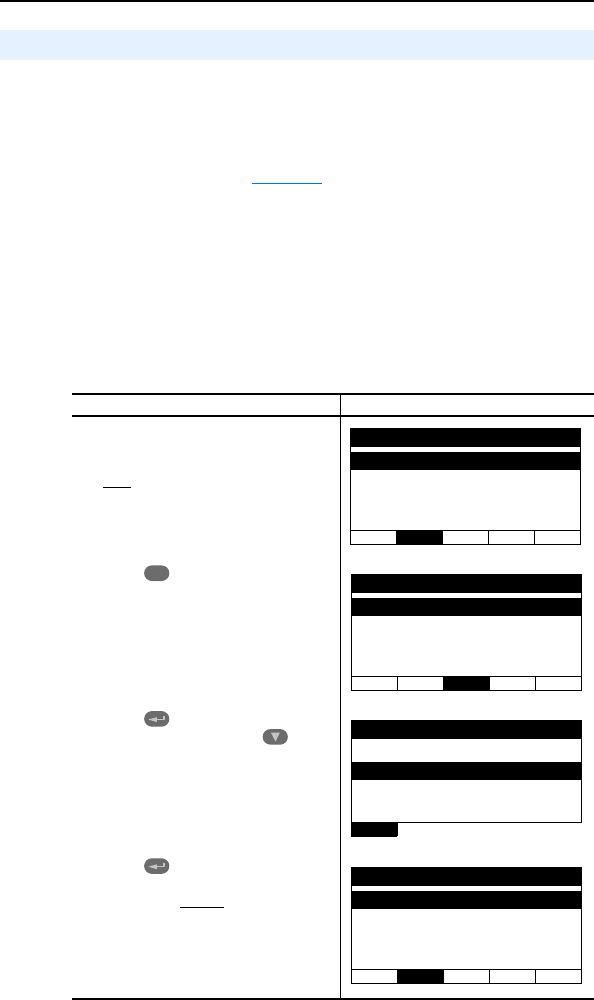

Table 3.A Accessing Adapter Parameters Using the HIM
Step Example Screens
1. Power up the drive. Then plug the
external HIM into the bottom of the
drive. The Parameters menu for the
drive
will be displayed.
2. Press Sel key once to display the
Device Select menu.
3. Press (Enter) key to display the
DSI Devices menu. Press Arrow
to scroll to 22-COMM-P.
4. Press (Enter) key to select the
Profibus adapter. The Parameters
menu for the adapter
will be displayed.
Parameters
Groups
Linear List
Changed Params
DIAG PA RA M DSEL MEM SEL
Sel
Device Selected
DSI Devices
DIAG PARAM DSEL MEM SEL
DSI Devices
PowerFlex 40
22-COMM-P
Parameters
Linear List
Changed Params
DIAG PA RA M DSEL MEM SEL
