User Manual

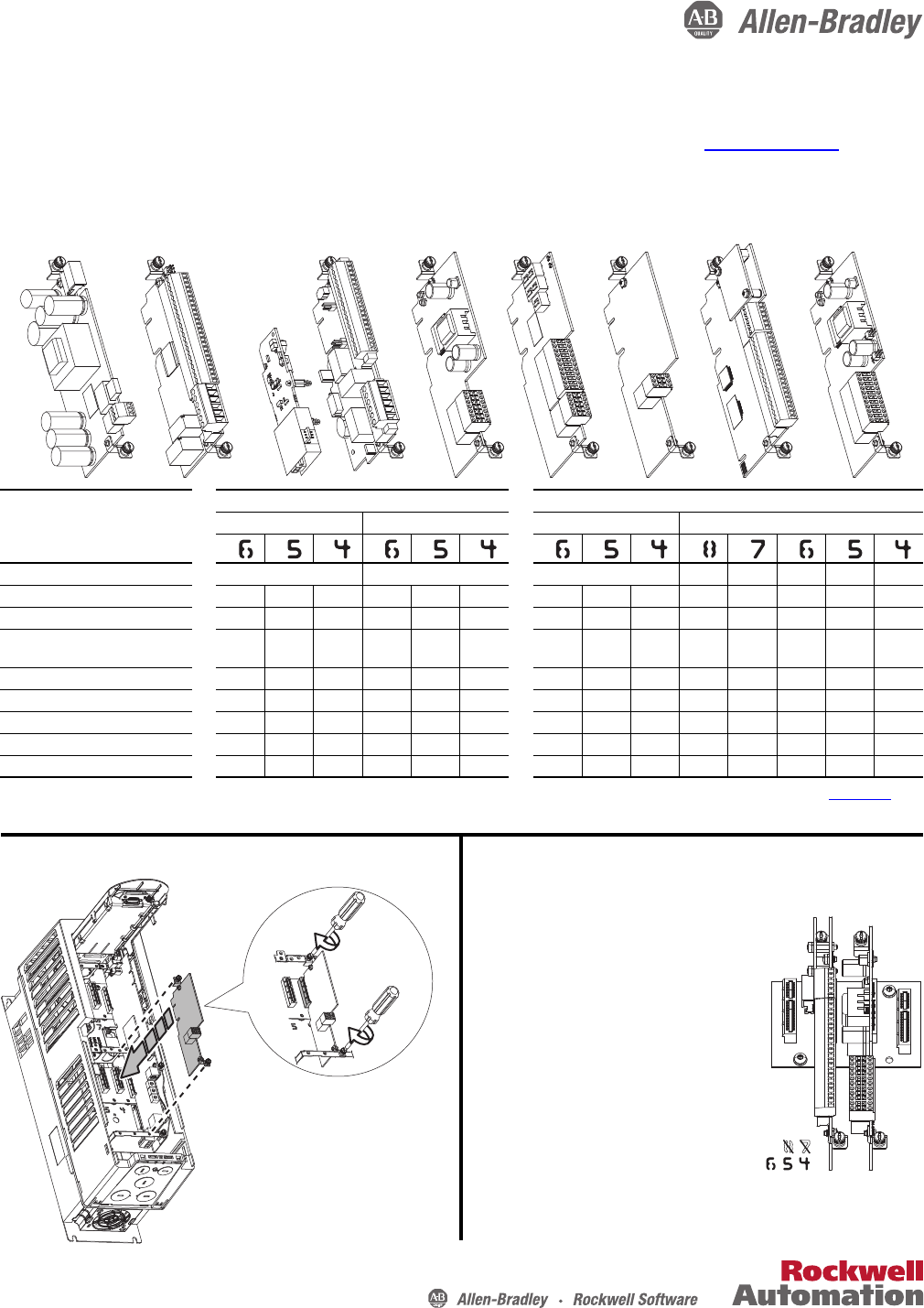

Installation Instructions
PowerFlex 750-Series Option Modules
These instructions cover the installation of the option modules listed below.
For instructions on installing Network Communication option modules, refer to publication 750COM-IN002
.
Compatible Ports
Option Module Installation Using 20-750-S1 with 20-750-DENC-1
20-750-APS
20-750-S
20-750-S1
20-750-2262C-2R
20-750-2263C-1R2T
20-750-2262D-2R
20-750-1132C-2R
20-750-1133C-1R2T
20-750-1132D-2R
20-750-ENC-1 20-750-DENC-1
20-750-UFB-1
20-750-ATEX
Option Module
Cat. No. 20-750-
PowerFlex 753 Drives PowerFlex 755 Drives
Frame 1 Ports Frame 2…7 Ports Frame 1 Ports Frame 2…10 Ports
APS See Page 2 See Page 2 See Page 2 Yes No No No No
2262C-2R, 2263C-1R2T, 2262D-2R No Ye s Yes Yes Ye s Yes No Ye s Yes Yes Ye s Yes Ye s Ye s
1132C-2R, 1133C-1R2T, 1132D-2R No Ye s Yes Yes Ye s Yes No Ye s Yes Yes Ye s Yes Ye s Ye s
1132C-2R, 1133C-1R2T, 1132D-2R
with 20-750-ATEX installed
(1)
No Ye s Yes No Yes Yes No Yes Ye s No No No Ye s Yes
ENC-1 No Ye s Yes Yes Ye s Yes No Ye s Yes Yes Ye s Yes Ye s Ye s
UFB-1 No Yes Ye s Yes Yes Ye s No Yes Ye s No No Yes Ye s Yes
S Yes Ye s Yes Yes Ye s Yes Yes Yes Ye s Yes Ye s Ye s Yes Ye s
S1
(2)
Yes Ye s Yes Yes Ye s Yes Yes Yes Ye s No No Ye s Yes Yes
DENC-1
(2)
No Ye s Yes Yes Ye s Yes No Ye s Yes Yes Ye s Yes Ye s Ye s
(1) For detailed instructions on installation of 11-Series I/O with the ATEX option module, refer to the PowerFlex 750-Series ATEX User Manual, publication 750-UM003.
(2) See Using 20-750-S1 with 20-750-DENC-1.
0.45 N•m (4.0 lb•in)
20-750-S1
20-750-DENC-1
IMPORTANT: When a Safe Speed Monitor option
(20-750-S1) is used with a Dual Incremental Encoder
option (20-750-DENC-1) both modules must be
installed on the same backplane (ports 6, 5, 4).
IMPORTANT: Only one safety option module can be
installed at a time. Multiple safety options or duplicate
safety option installations are not supported.
