14 PowerFlex® DC Drive - Frame B AC Line Snubber Board and High Wattage Resistors
Step 5: Remove the
Existing AC Line Snubber
Board and Resistors
1. Remove the screws and washers and/or bolts and washers that secure
the (red, blue and black) wires from the AC Line Snubber board and
resistors to the bus bars and remove the wires.
=

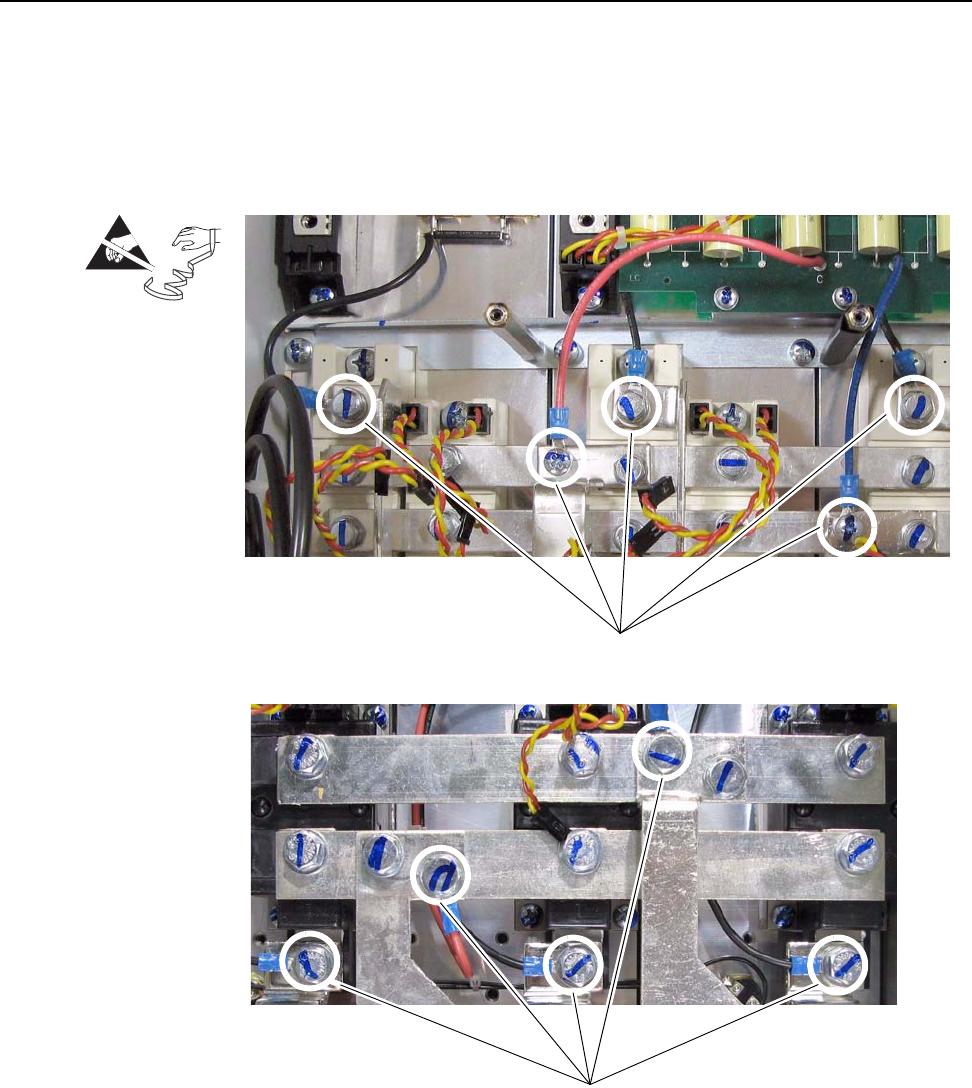

Remove screws, bolts, washers and wires
Regenerative Drive
Non-Regenerative Drive
Remove bolts, washers and wires
