PowerFlex® DC Drive - Frame B AC Line Snubber Board and High Wattage Resistors 11
11. Remove the appropriate gate leads (see Figure 1 on page 6 for location):
– For non-regenerative drives, remove each pair of (orange and yellow)
gate lead cables from connectors KG01…KG06 and push each lead
through the appropriate opening in the board.
– For regenerative drive, remove each pair of (orange and yellow) gate
lead cables from connectors KG01…KG06 and KG1…KG6 and push
each lead through the appropriate opening in the board.
Important: Remove the gate leads by grasping the connector and
pulling up. DO NOT pull the gate leads off by pulling on
the wires.

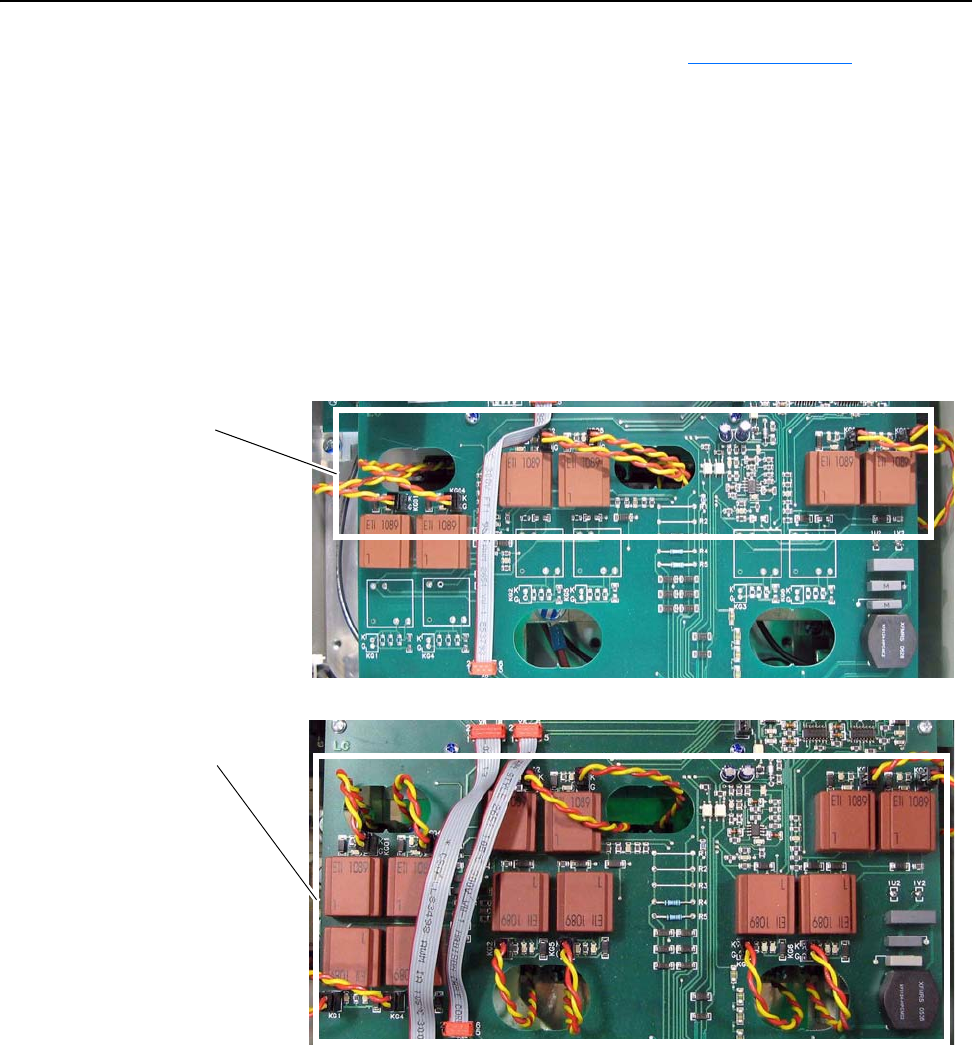

For non-regenerative
drives, remove six gate
leads and route
through openings in
board
For regenerative
drives, remove 12 gate
leads and route
through openings in
board
