PowerFlex® DC Drive - Frame A SCR Modules for Drives with a Power Traces Circuit Board 15

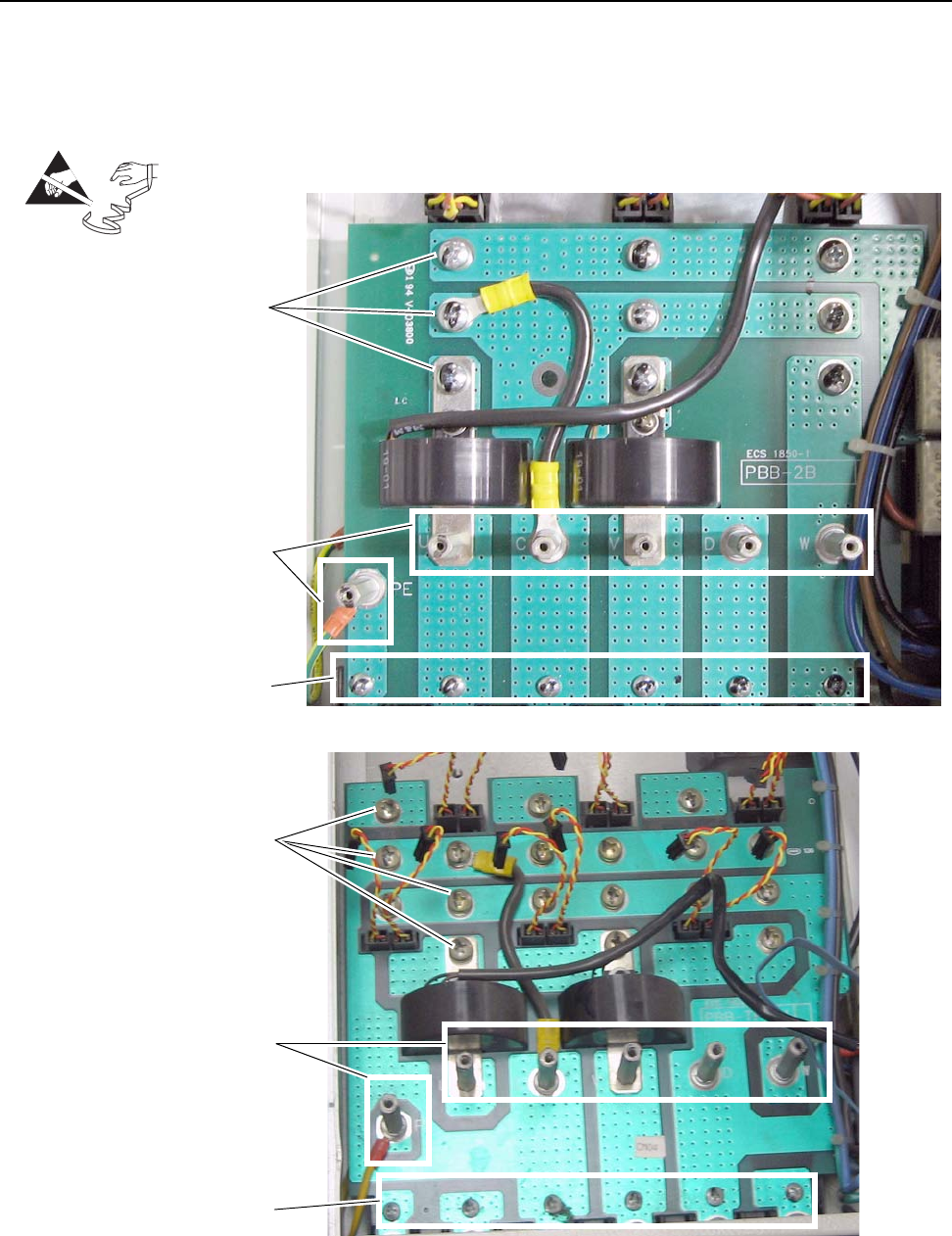

3. Remove all screws and washers that secure the board to the SCR
Modules and power terminal isolation strip and remove the Power
Traces board from the drive.
=
Non-Regenerative drive
Remove all
screws and
washers
Remove six
stand-offs
and PE
ground wire
Remove six
screws
Remove six
stand-offs
and PE
ground wire
Remove all
screws and
washers
Remove six
screws
Regenerative drive
