12 PowerFlex® DC Drive - Frame A Pulse Transformer Circuit Board

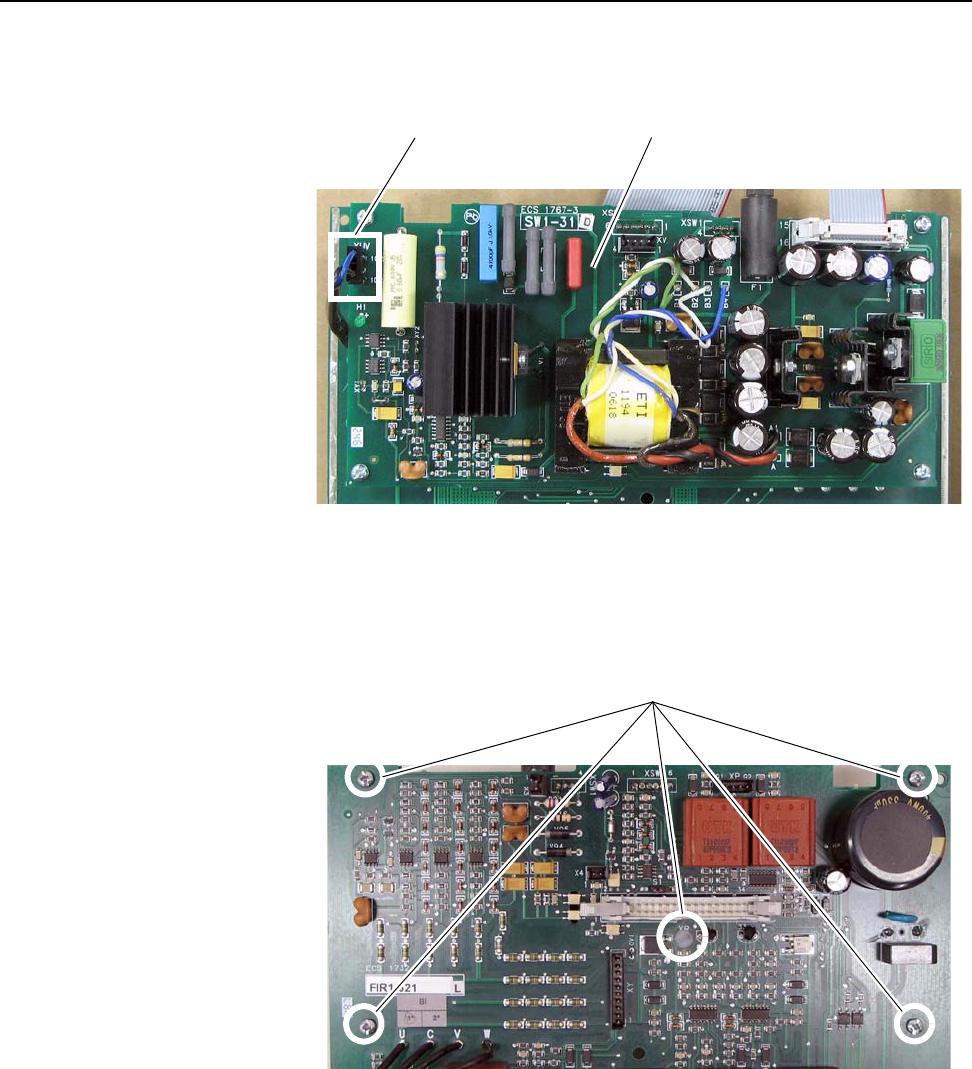

8. Remove the cable from connector XUV on the Switching Power Supply
board.
9. Remove the five screws from the Pulse Transformer board that secure the
stand-offs connected to the Switching Power Supply board and remove
the Switching Power Supply board from the back of the Pulse
Transformer board.
Remove cable at XUV
Switching Power Supply board on back of Pulse Transformer board.
Remove screws
