PowerFlex® DC Drive - Cooling Fan for Frame A Drives Rated 38A & 55A with 230V AC Input and 35A, 45A & 52A with 460V AC Input 3

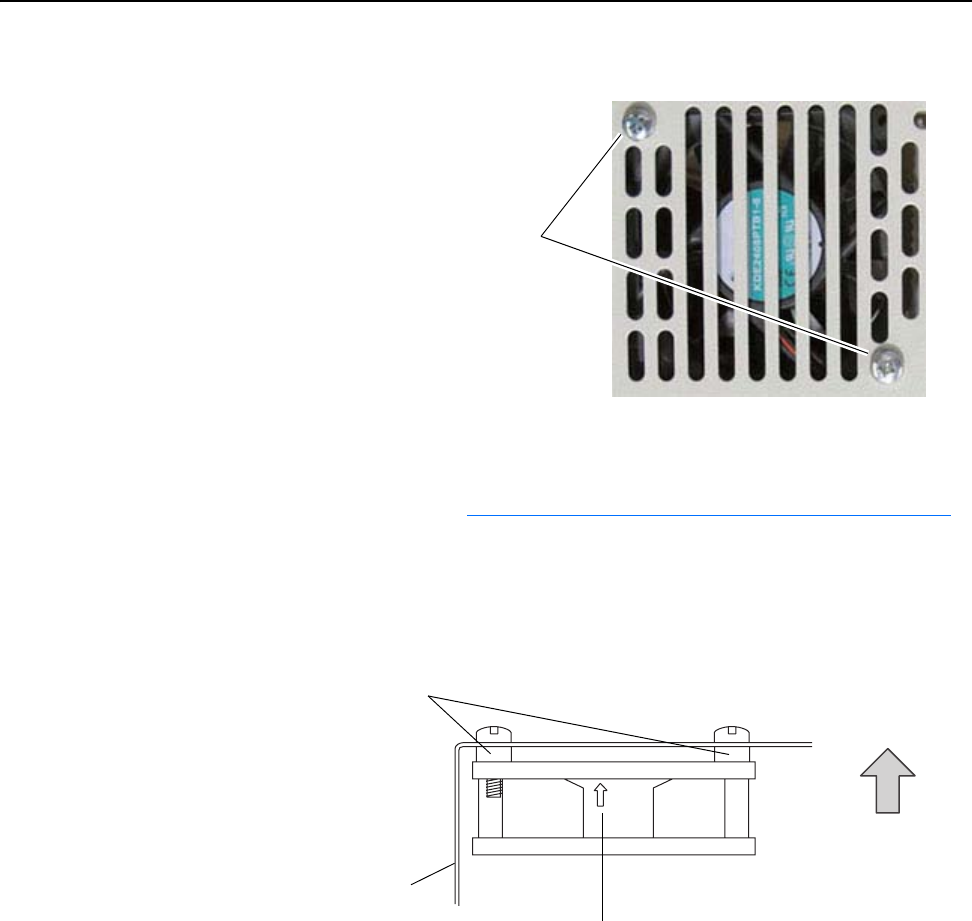

2. Remove the two screws that secure the fan and spacers to the air flow
plate and remove the fan.
Step 3: Install the Air Flow
Plate and New Fan
Install the air flow plate and cooling fan in the reverse order of removal as
detailed in step 2: Remove the Air Flow Plate and Existing Fan
on page 2.
Important:Verify that the air flow arrow on the fan is pointed toward the
top of the drive.
Important:Verify that the two spacers are properly placed during
installation.
Remove two screws
Air flow arrow must point
toward top of drive.
Spacers
Top of Drive
Air Flow
Plate
