Appendix A Human Interface Module Overview
Menu Structure

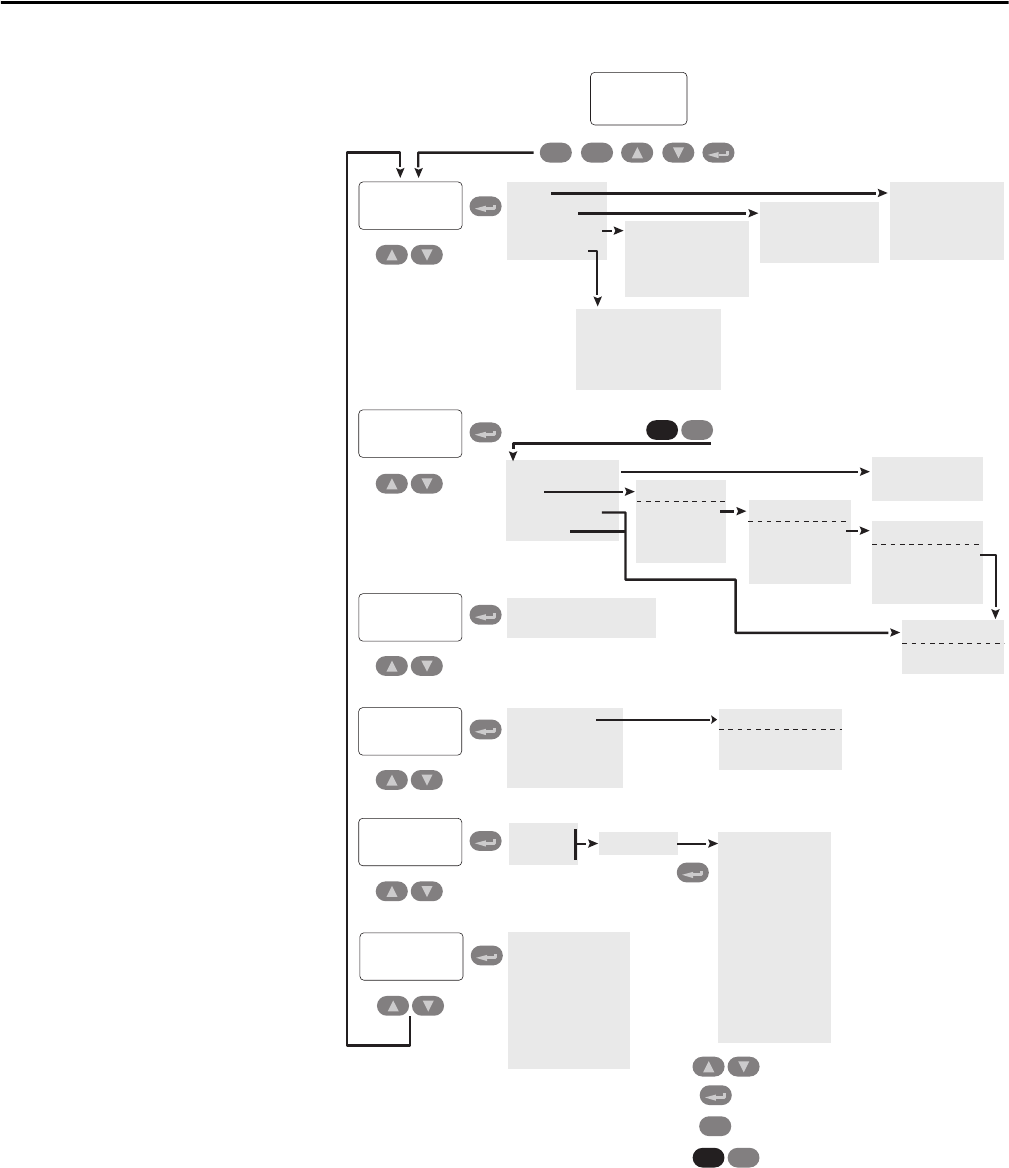

Figure 2 - HIM Menu Structure
User
Display
Diagnostics
Start-Up
Esc Sel
Esc
Faults
Status Info
Device Version
HIM Version
View Fault Queue
Clear Faults
Clr Fault Queue
Reset Device
Logic Status
Run Inhibit Stat
Logic Control State
LCD HIM Product Data
LCD HIM Standard
Control Board
Keyboard – Numeric
Continue
Start Over
Press
Press
Press
to move between menu items
Press to select how to view parameters
to select a menu item
to move 1 level back in the menu structure
Memory Storage
Him CopyCat
Reset To Defaults
Save EEPROM
Recall EEPROM
Device -> HIM
Device <- HIM
Delete HIM Set
Introduction
PowerFlex 700S
Connected DPI Devices
Device Select
Parameter
Preferences
Drive Identity
Change Password
User Dspy Lines
User Dspy Time
User Dspy Video
Reset User Dspy
Contrast
FGP: File
File 1 Name
File 2 Name
File 3 Name
FGP: Group
Group 1 Name
Group 2 Name
Group 3 Name
FGP: Parameter
Parameter Name
Parameter Name
Parameter Name
Basic
Advanced
View selected through
Param Access Lvl
FGP
Numbered List
Changed
ALT
Sel
ALT
Sel
Value Screen
PowerFlex 700S
Product Data
Main Control Board
Power Unit Board
Motor Control
Motor Data
Feedback Config
Pwr Circuit Diag
Direction Test
Motor Tests
Inertia Measure
Speed Limits
Speed Control
Strt/Stop/I/O
Done/Exit
