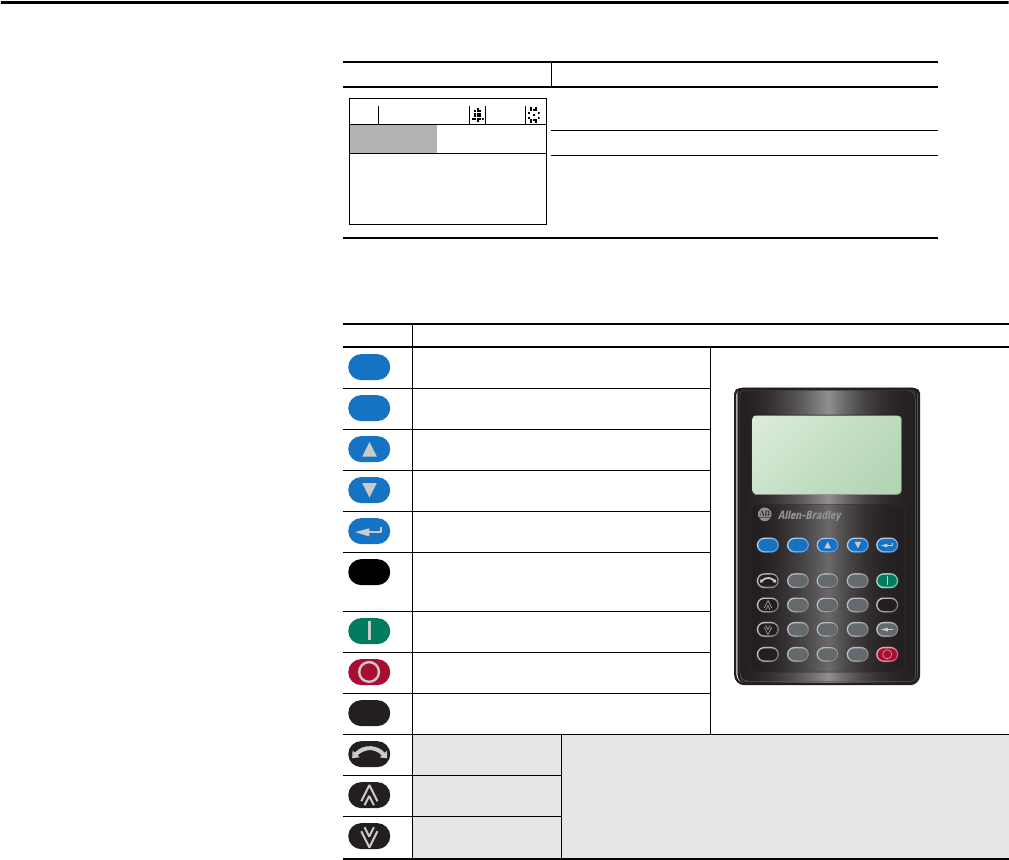

Appendix A Human Interface Module Overview
LCD Display Elements
HIM Key Functions
Display Description
Direction⎥ Drive Status⎥ Alarm⎥ Auto/Man⎥ Information
Commanded or Output Speed
Programming / Monitoring / Troubleshooting
F-> Power Loss Auto
0.0
RPM
Main Menu:
Diagnostics
Parameter
Device select
Key Description
Exit a menu, cancel a change to a parameter value, or
acknowledge a fault/alarm.
Select a digit, select a bit, or enter edit mode in a
parameter screen.
Scroll through options, increase a value, or toggle a
bit.
Scroll through options, decrease a value, or toggle a
bit.
Enter a menu, enter edit mode in a parameter screen,
or save a change to a parameter value.
Access the function associated with a programming
or numeric key. Provides access to the Large Format
Display.
Start the drive.
Stop the drive or clear a fault.
Jog the drive.
Change direction. The keys are active only when the HIM is granted Manual Control or Par 27
[Speed Ref A l] / 28 [Speed Ref B l] is set to:
Option 12 “DPI Port 1” for a HIM installed in the drive cover
or
Option 13 “DPI Port 2” for a HIM connected by cable for handheld or remote
installation option
Increase speed.
Decrease speed.
Esc
Esc
7 8 9
4 5 6
1 2 3
.
0 +/-
Sel
Jog
Alt
Exp
Param #
S.M.A.R.T.
View
Lang
Auto / M an
Remove
Human Interface Module (HIM)
Sel
ALT
Jog
