Appendix A
Human Interface Module Overview
This section provides information on using the PowerFlex 7-Class (DPI) Human
Interface Module (HIM). Refer to the PowerFlex 20-HIM-A6 and 20-HIM-
C6S HIM User Manual, publication 20HIM-UM001
, for information on using
the Enhanced HIM (if installed).
External and Internal
Connections

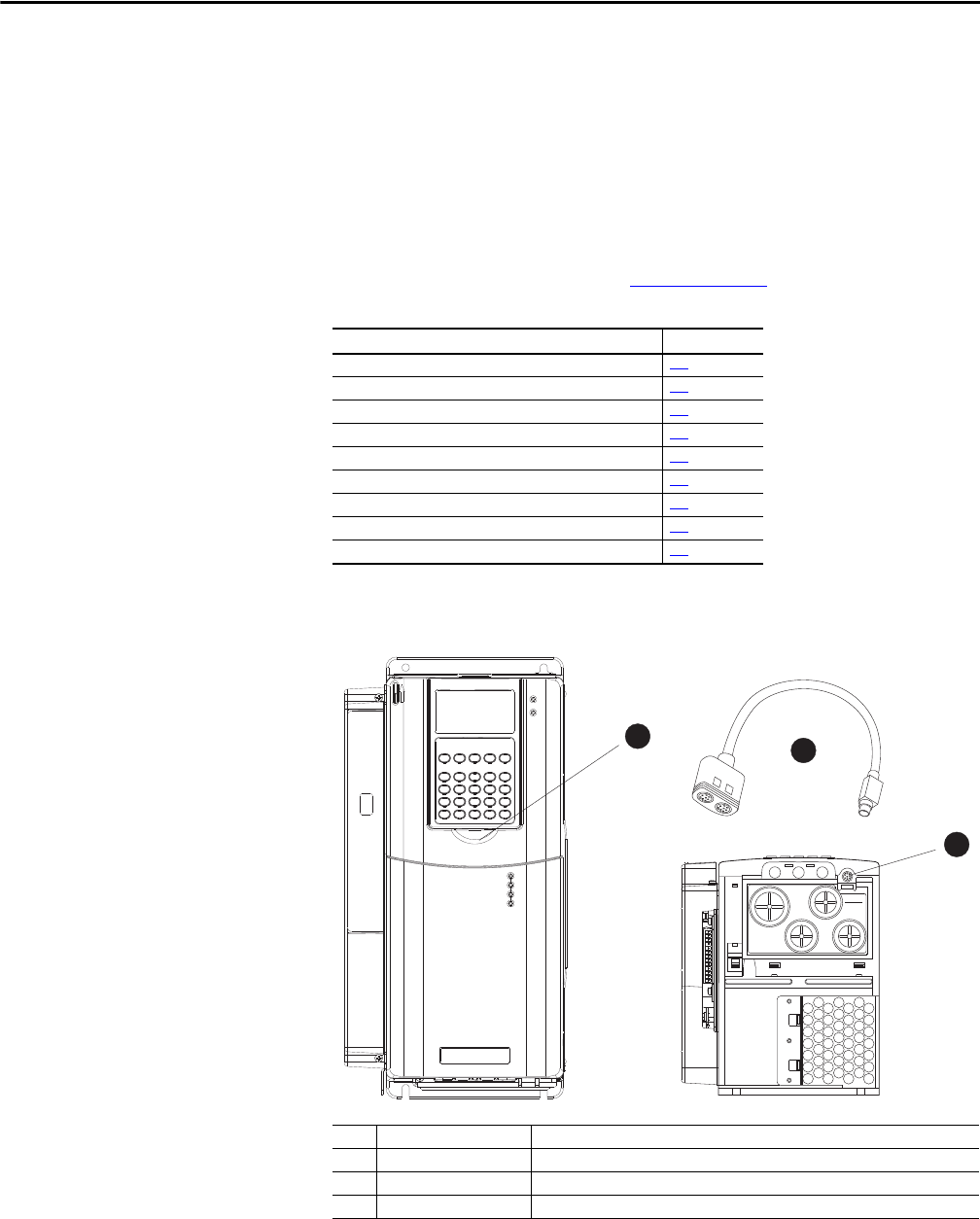

The PowerFlex 700S provides a cable connection for a hand-held HIM or Port
Expander/Splitter (Frame 1 shown).
Topic Page
External and Internal Connections 153
LCD Display Elements 154
HIM Key Functions 154
Alternate (ALT) Functions 155
Access the Start-Up Routine 155
Menu Structure 156
View and Edit Parameters 158
Parameter Links 159
Remove/Install the HIM 160
No. Connector Description
1 DPI Port 1 HIM connection when installed in cover.
2 DPI Port 2 Cable connection for handheld and remote options.
3 DPI Port 3 or 2 Splitter cable connected to DPI Port 2 provides additional port.
1
2
3
2
1or3
