HIM Overview Appendix A
The PowerFlex 700H drive is initially set to Basic Parameter View. To view all
parameters, set parameter 196 [Param Access Lvl] to option 1 “Advanced”.
View and Edit Parameters
LCD HIM
To view and edit a parameter using the LCD HIM, follow these instructions:
Numeric Keypad Shortcut
If using a HIM with a numeric keypad, press the ALT key and the +/– key to
access the parameter by typing its number.

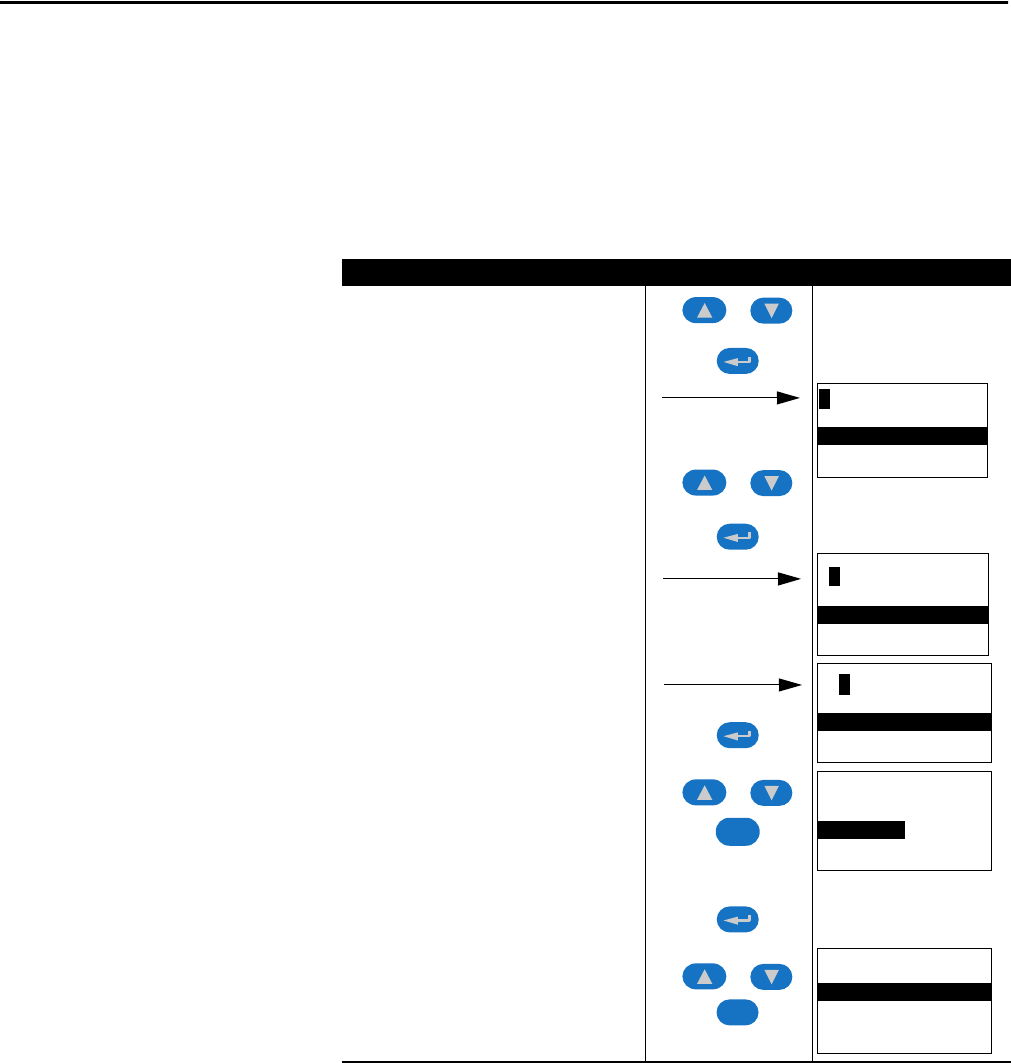

Step Key(s) Example Displays
1. In the Main Menu, press the Up Arrow or Down
Arrow to scroll to “Parameter.”
2. Press Enter.
“FGP: File” displays on the top line and the first
three files display below it.
3. Press the Up Arrow or Down Arrow to scroll
through the files.
4. Press Enter to select a file.
The groups display below the File name.
5. Repeat steps 3 and 4 to select a group and then a
parameter.
The parameter value screen displays.
6. Press Enter to edit the selected parameter.
7. Press the Up Arrow or Down Arrow to change the
value. If desired, press Sel to move from digit to
digit, letter to letter, or bit to bit. The digit or bit
that you can change will be highlighted.
8. Press Enter to save the value. If you want to cancel
a change, press Esc.
9. Press the Up Arrow or Down Arrow to scroll
through the parameters in the group, or press Esc
to return to the group list.
