HIM Overview Appendix A
Menu Structure

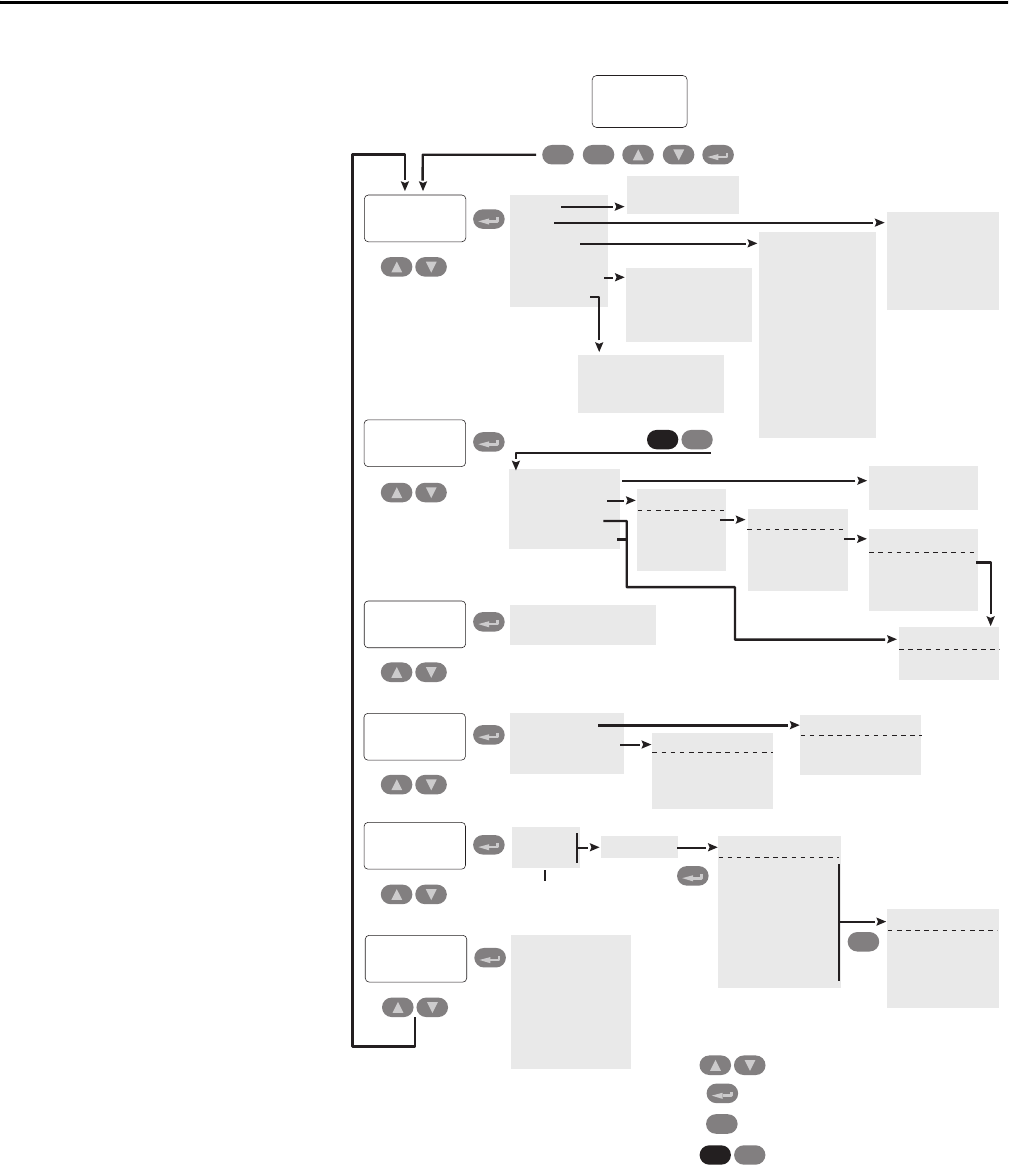

Figure 2 - HIM Menu Structure
User
Display
Diagnostics
Start-Up
Esc Sel
Esc
Alarms
Faults
Status Info
Device Items
Device Version
HIM Version
Fault Info
View Fault Queue
Clear Faults
Clr Fault Queue
Reset Device
View Alarm Queue
Clr Alarm Queue
Drive Status 1
Drive Status 2
Drive Alarm 1
Drive Alarm 2
Speed Ref Source
Start Inhibits
Last Stop Source
Dig In Status
Dig Out Status
Drive Temp
Motor OL Count
LCD HIM Product Data
LCD HIM Control Board
Keyboard – Numeric
Continue
Start Over
Press
Press
Press
to move between menu items
Press to select how to view parameters
to select a menu item
to move 1 level back in the menu structure
Memory Storage
Him CopyCat
Device User Sets
Reset To Defaults
Device -> HIM
Device <- HIM
Delete HIM Set
Introduction
PowerFlex 700H
Connected DPI Devices
Device Select
Parameter
Preferences
Device Identity
Change Password
User Dspy Lines
User Dspy Time
User Dspy Video
Reset User Dspy
Contrast
FGP: File
File 1 Name
File 2 Name
File 3 Name
FGP: Group
Group 1 Name
Group 2 Name
Group 3 Name
FGP: Parameter
Parameter Name
Parameter Name
Parameter Name
Basic
Advanced
View selected through
Param Access Lvl
File-Group-Par
Numbered List
Changed Params
ALT
Sel
ALT
Sel
Value Screen
PowerFlex 700H
Product Data
Control Board
Power Board Slot A-E
Drive User Set:
Save To User Set
Load Frm Usr Set
Active Name Set
Complete Steps:
1. Input Voltage
2. Motor Dat/Ramp
3. Motor Tests
4. Speed Limits
5. Speed Control
6. Strt/Stop/I/O
7. Done/Exit
Esc
Make a selection:
Abort
Backup
Resume
Start-Up Menu
Only available if power
cycled during startup
