Chapter 3 Troubleshooting
Drive Status
The condition or state of your drive is constantly monitored. Any changes will be
indicated through the LEDs and/or the HIM (if present).

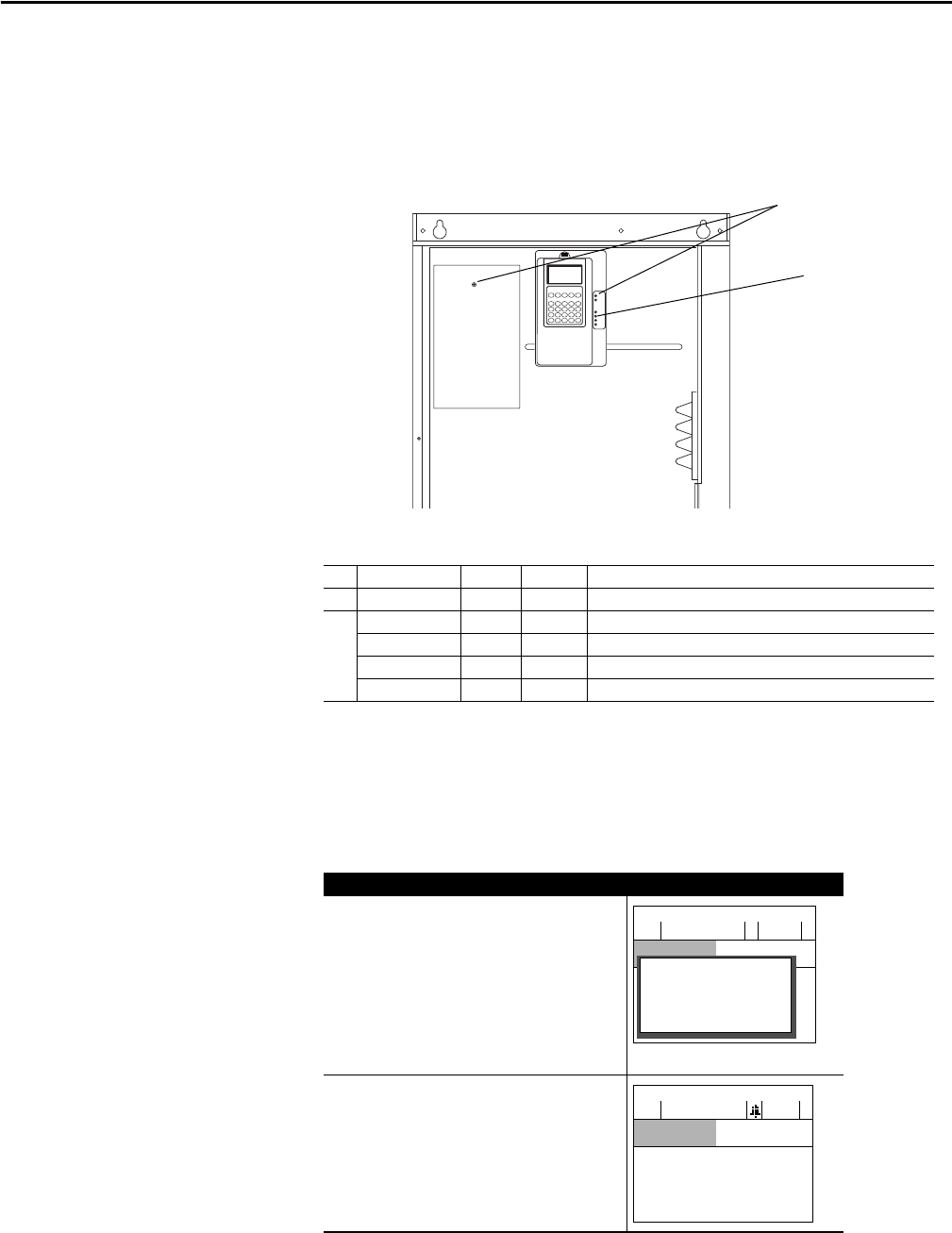

Front Panel LED Indications
HIM Indications
The LCD HIM also provides visual notification of a fault or alarm condition.
# Name Color State Description
1 PWR (Power) Green Steady Illuminates when power is applied to the drive.
2 PORT
(1)
(1) Refer to the appropriate Communication Option User Manual for details.
Green – Status of DPI port internal communications (if present).
MOD
(1)
Yellow – Status of communications module (when installed).
NET A
(1)
Red – Status of network (if connected).
NET B
(1)
Red – Status of secondary network (if connected).
Condition Display
Drive is indicating a fault.
The LCD HIM immediately reports the fault condition by
displaying the following.
• “Faulted” appears in the status line
• Fault number
• Fault name
• Time that has passed since fault occurred
Press Esc to regain HIM control.
Drive is indicating an alarm.
The LCD HIM immediately reports the alarm condition by
displaying the following.
• Alarm name (Type 2 alarms only)
• Alarm bell graphic
1
2
F-> Faulted Auto
0.0
Hz
Main Menu:
Diagnostics
Parameter
— Fault — F5
OverVoltage
Time Since Fault
0000:23:52
F-> Power Loss Auto
0.0
Hz
Main Menu:
Diagnostics
Parameter
Device Select
