User Manual

PowerFlex 700 with Vector Control Option Custom Firmware 7
Rockwell Automation Publication 20B-IN020C-EN-P - January 2014
APPLICATIONS
Oil Well Pump
687 [Pump Off Speed]
Sets the percent drop in speed from the commanded speed
during a “pump off” condition.
Default:
Min/Max:
Units:
20.0%
0.0/100.0%
0.1%
688 [Pump Off Time]
Sets the time the drive continues to run at the reduced
“pump off” speed before returning to commanded (full)
speed and checking if the “pump off” condition still exists.
Default:
Min/Max:
Units:
600.0 Secs
120.0/60000.0 Secs
0.1 Secs

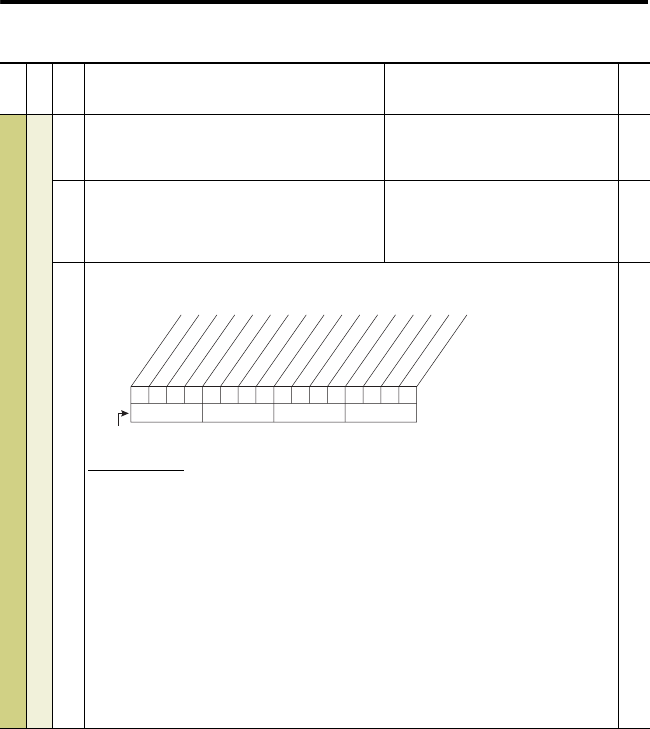

689 [Pump Off Setup]
Controls additional Pump Off features.
Option Descriptions
Pos Filter Sets level of filtering on torque for position calculation.
0=Light
1=Heavy. Used to remove extra peaks in the waveform.
Pos Offset Adjusts correction factor for motor slip in position calculator. Set bit if torques and
position count are drifting apart.
Pos Min Trq Adjust the minimum torque threshold for the position detector.
0=10%
1=Auto Detect Min Torque.
Cycle PO Pos Use positive level changes for Pump Off in cycle mode.
0= Off
1=On.
Baseline Dis Disables the calculation of a new torque baseline each time the drive is started. The
drive uses the torque baseline that was previously calculated and saved.
Custom Firmware Parameters (cont.)
File Group No.
Parameter Name and Description
See User Manual for symbol descriptions
Values
Related
0000xxxxxxxxxxx
10 01234567891112131415
x = Reserved
Bit #
Pos Filter
Pos Oset
Pos Min Trq
Cycle PO Pos
0
Baseline Dis
