Rockwell Automation Publication GMC-RM007A-EN-P - September 2011 9
Kinetix 7000 Drive Systems

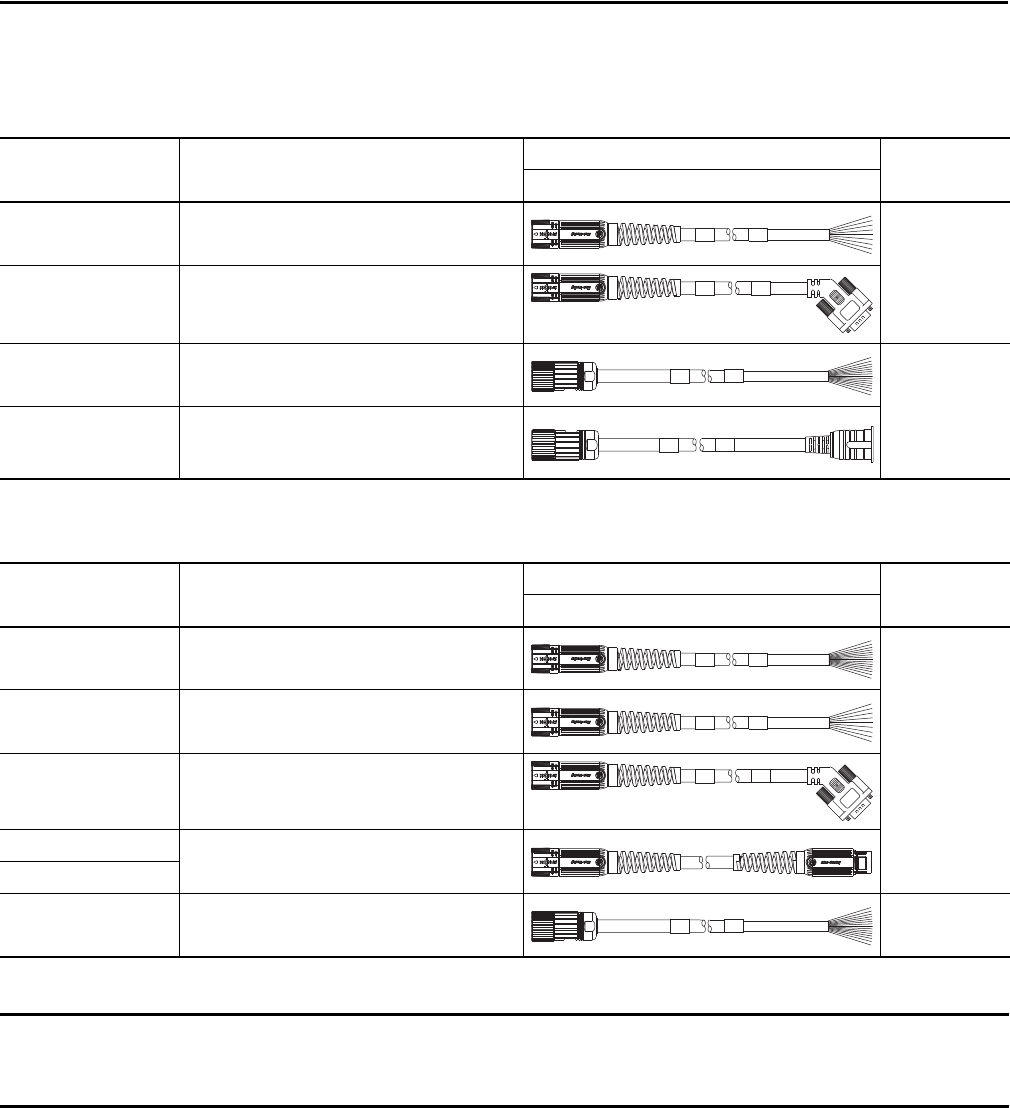

2090-Series Motor/Actuator Cables Overview
Feedback Cable Descriptions (standard, non-flex)
Feedback Cable Descriptions (continuous-flex)
Standard Cable
Cat. No.
Description
Cable Configuration
Motor/Actuator
Connector
Motor/Actuator End Drive End
2090-CFBM7DF-CEAAxx
• Drive-end flying-leads (DF)
• High-resolution or resolver applications (CE)
SpeedTec DIN
(M7)
2090-CFBM7DD-CEAAxx
• Drive-end 15-pin connector (DD)
• High-resolution or resolver applications (CE)
2090-XXNFMF-Sxx
• Drive-end flying-leads
• High-resolution or incremental applications
Threaded DIN
(M4)
2090-CFBM4E2-CATR
• Drive-end bayonet (E2), transition (TR) cable
(1)
• Motor-end threaded DIN (M4)
• All feedback types (CA)
(1) Threaded DIN connector (motor end) and bayonet connector for 2090-XXNFMP-Sxx cable.
Continuous-flex Cable
Cat. No.
Description
Cable Configuration
Motor/Actuator
Connector
Motor/Actuator End Drive End
2090-CFBM7DF-CDAFxx
• Drive-end flying-leads (DF)
• High-resolution or incremental applications (CD)
SpeedTec DIN
(M7)
2090-CFBM7DF-CEAFxx
• Drive-end flying-leads (DF)
• High-resolution or resolver applications (CE)
2090-CFBM7DD-CEAFxx
• Drive-end 15-pin connector (DD)
• High-resolution or resolver applications (CE)
2090-CFBM7E7-CDAFxx
• Drive-end (male) connector, extension (E7)
(1)
• Motor-end SpeedTec DIN cable plug (M7)
(1) SpeedTec DIN connector (motor end) and male connector for extending SpeedTec or threaded DIN cable.
2090-CFBM7E7-CEAFxx
2090-CFBM4DF-CDAFxx
• Drive-end flying-leads
• High-resolution or incremental applications
Threaded DIN
(M4)
IMPORTANT
Feedback cables with the CE designation, for example 2090-CFBM7DF-CEAAxx, are intended for high-resolution encoder or
resolver applications and have fewer conductors than feedback cables with the CD designation, for example
2090-CFBM7DF-CDAFxx, which are intended for high-resolution or incremental encoder applications.
