Publication 2094-IN009C-EN-P — April 2008
6 Removing and Replacing the Line Interface Module Internal Components

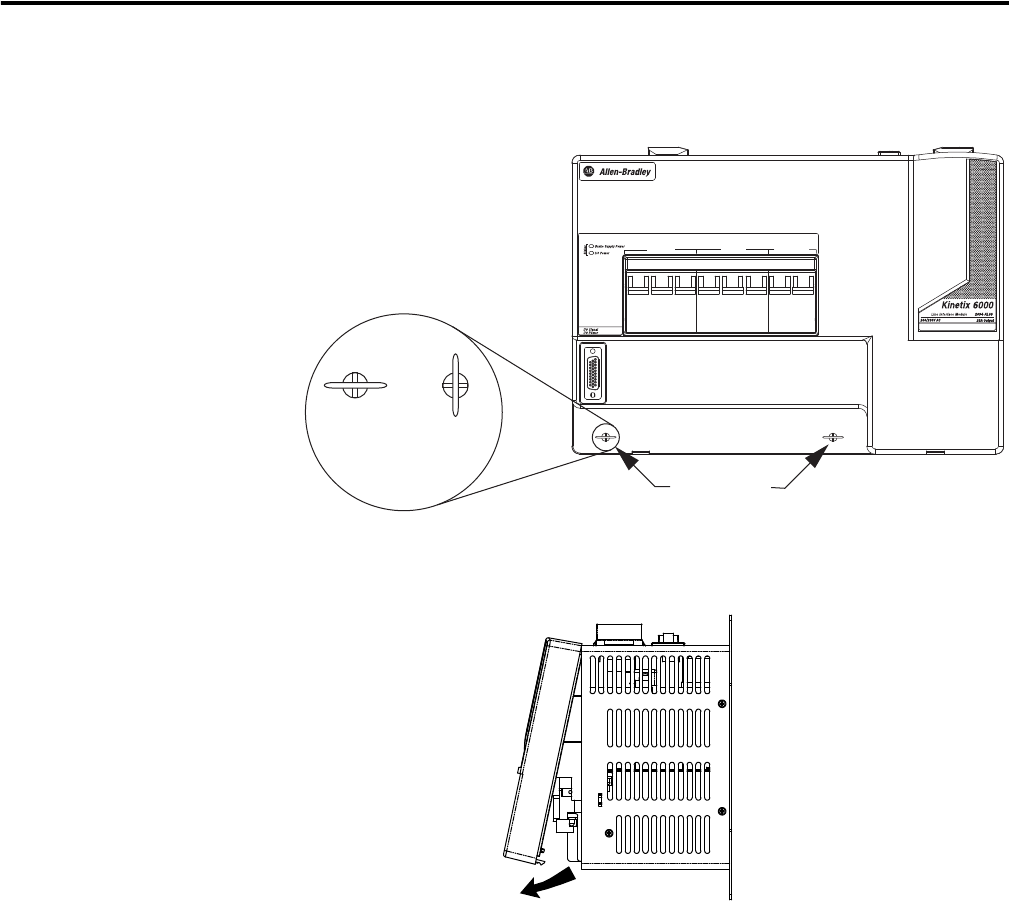

6. Locate the two bail fasteners (lower front cover) and rotate them
one quarter turn in either direction.
7. Slide the cover away and down from the LIM module.
8. To replace the LIM module front cover, reverse steps 6 and 7.
MAIN VAC
AUX VAC
BRAKE-I/O VAC
Line Interface Module, Front View
(2094-AL09 module is shown)
Bail Fasteners
Open
Closed
Line Interface Module, Right-side View
(2094-AL09 module is shown)
