Kinetix 2000 Drive Systems

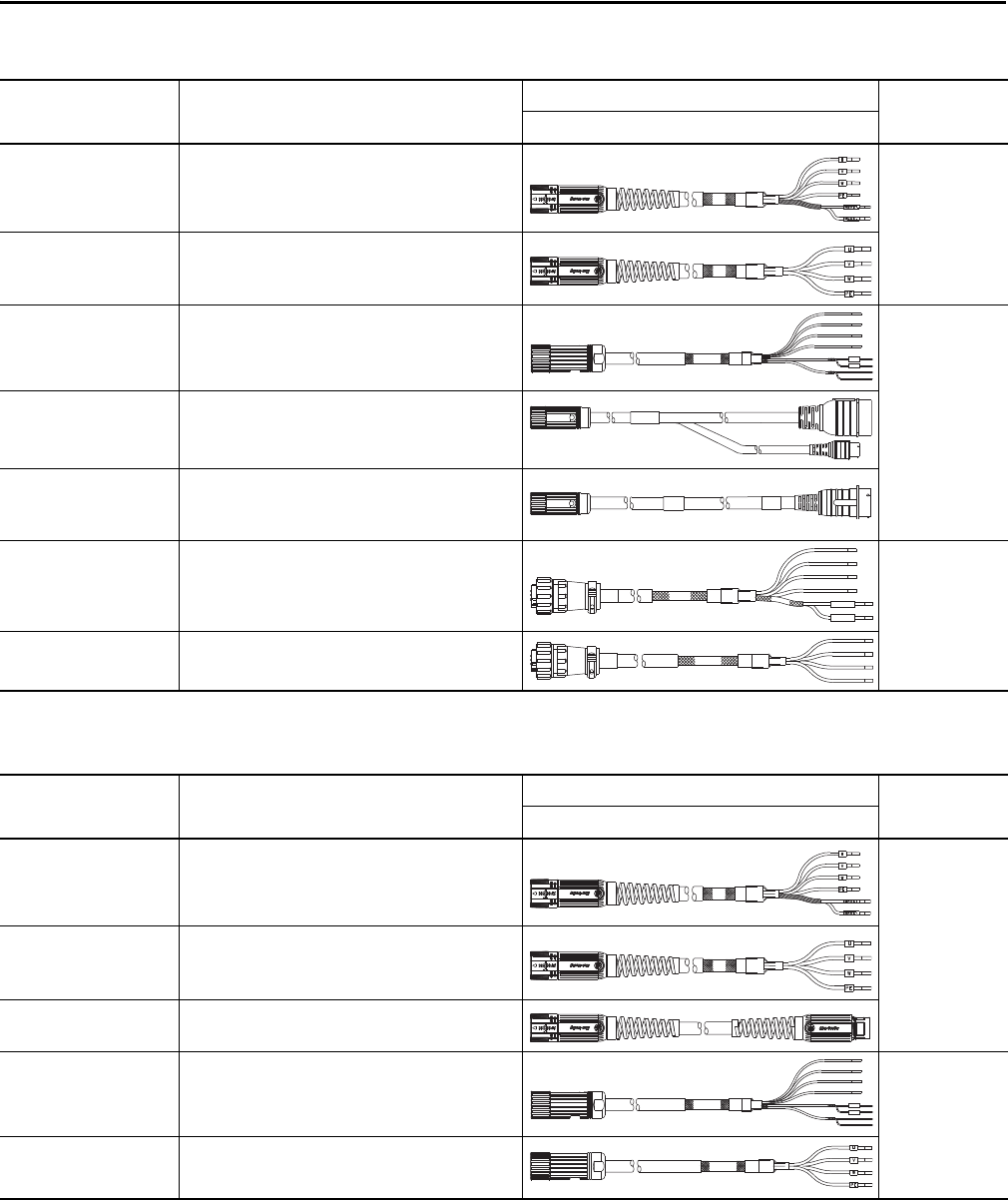

Power/Brake Cable Descriptions (standard, non-flex)
Power/Brake Cable Descriptions (continuous-flex)
Standard Cable
Cat. No.
Description
Cable Configuration
Motor/Actuator
Connector
Motor/Actuator End Drive End
2090-CPBM7DF-xxAAxx
• Drive-end flying-leads (DF)
• Power/brake wires (PB)
SpeedTec DIN
(M7)
2090-CPWM7DF-xxAAxx
• Drive-end flying-leads (DF)
• Power wires only (PW)
2090-XXNPMF-xxSxx
• Drive-end flying-leads
• Power/brake wires
Threaded DIN
(M4)
2090-CPBM4E2-xxTR
• Drive-end bayonet (E2), transition (TR) cable
(1)
• Motor-end threaded DIN (M4)
• Power/brake wires (PB)
(1) Threaded DIN connector (motor end) and bayonet connector for 2090-XXNFMP-Sxx cable.
2090-CPWM4E2-xxTR
• Drive-end bayonet (E2), transition (TR) cable
(1)
• Motor-end threaded DIN (M4)
• Power wires only (PW)
2090-CPBM6DF-16AAxx
• Drive-end flying-leads (DF)
• Power/brake wires (PB)
Circular Plastic
(M6)
2090-CPWM6DF-16AAxx
• Drive-end flying-leads (DF)
• Power wires only (PW)
Continuous-flex Cable
Cat. No.
Description
Cable Configuration
Motor/Actuator
Connector
Motor/Actuator End Drive End
2090-CPBM7DF-xxAFxx
• Drive-end flying-leads (DF)
• Power/brake wires (PB)
SpeedTec DIN
(M7)
2090-CPWM7DF-xxAFxx
• Drive-end flying-leads (DF)
• Power wires only (PW)
2090-CPBM7E7-xxAFxx
• Drive-end (male) connector, extension (E7)
(1)
• Motor-end SpeedTec DIN cable plug (M7)
(1) SpeedTec DIN connector (motor end) and male connector for extending SpeedTec or threaded DIN cable.
2090-CPBM4DF-xxAFxx
• Drive-end flying-leads (DF)
• Power/brake wires (PB)
Threaded DIN
(M4)
2090-CPWM4DF-xxAFxx
• Drive-end flying-leads (DF)
• Power wires only (PW)
BR+
BR-
MBRK+
MBRK-
BR+
BR-
