6 Power with Brake Connector Kit for TL-Series Servo Motors Installation Instructions
Publication 2090-IN018A-EN-P - June 2010
Power Connector
This table shows the pin connections for the power connector on a TL-Series motor.
Motor Power Connections
Pin Signal Wire Color
(2)
(2) The wire is internal to the TL-Series motor. For consistency, wires of the same color should be used in any cable.
1 U Phase Red
2 V Phase Black
3 W Phase White
4 Reserved —
5 Ground Green/Yellow
6 Reserved —
7 MBRK+
(1)
(1) Brake pins are to be used only with brake motors, catalog numbers TLY-A/Bxxxx-xxx4xx.
Yellow
8 Reserved —
9 MBRK-
(1)
Blue

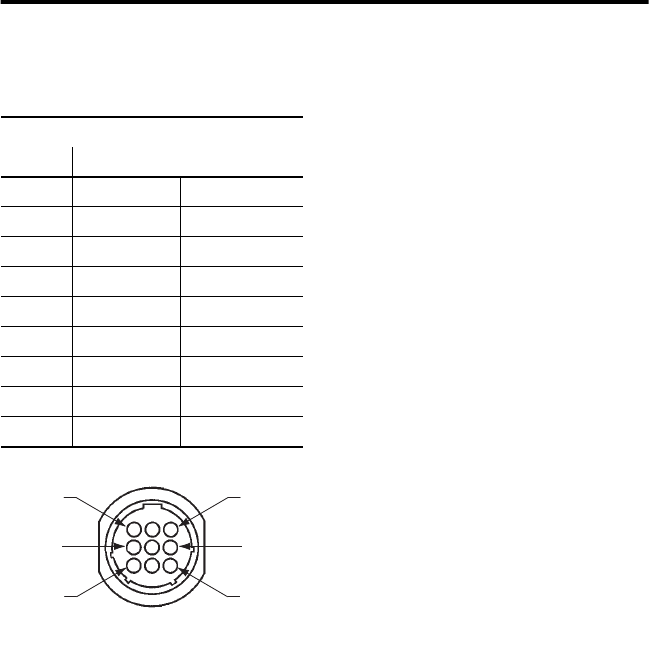

Power Cable Pinouts
3
6
9
1
4
7
Front of Tyco AMP 206705-2 Housing
