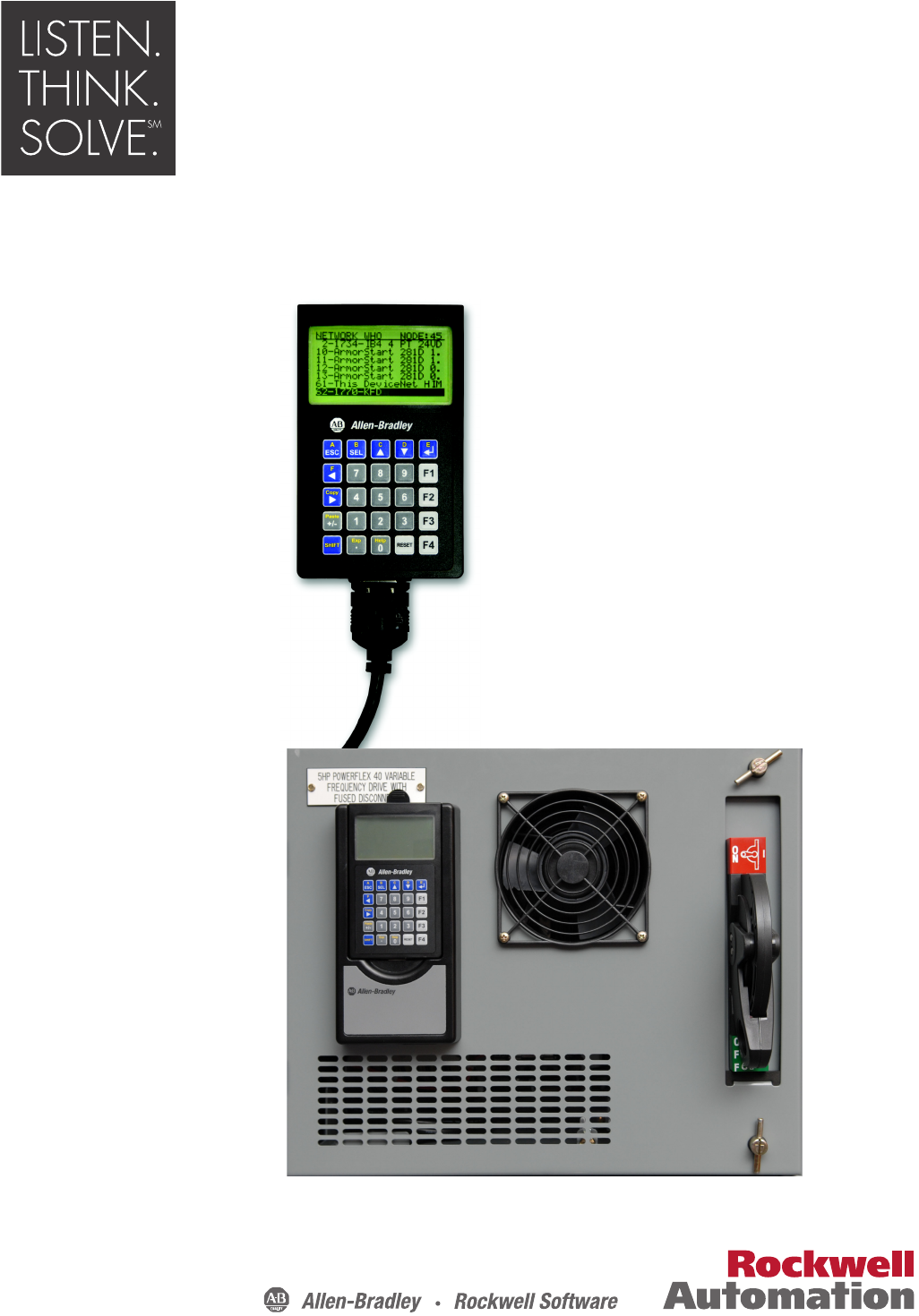

QUICK REFERENCE DeviceNet™ Configuration Terminal BULLETIN 193 DeviceNet™ Configuration Terminal CATALOG NUMBER 193-DNCT
DeviceNet™ Configuration Terminal IMPORTANT Bill of Material For complete information, see the DeviceNet configuration Terminal User Manual, Publication Number 193-UM009A-EN-P, available at the Rockwell Automation Literature Library: http://literature.rockwellautomation.
DeviceNet™ Configuration Terminal Shifted Key Descriptions 3 The following table describes the alternate functionality of each key when it is pressed after the shift key Key Combination The letter A. Used to enter values in hexadecimal. The letter B. Used to enter values in hexadecimal. The letter C. Used to enter values in hexadecimal. The letter D. Used to enter values in hexadecimal. The letter E. Used to enter values in hexadecimal. The letter F. Used to enter values in hexadecimal. Copy function.
Terminal Setup DeviceNet™ Configuration Terminal Enable = Auto addressing on power up Disable = Use fixed network address. Enable = AutoBaud enabled Disable = Use fixed Baud Rate Fixed Baud Rate setting Fixed Address setting OR the starting address for auto address determination Powerup delay in seconds To scroll through the items on the screen, press the SEL key. To change the value of a selected item, press the Increment or Decrement key.
DeviceNet™ Configuration Terminal 5 Tools: Provides access to Node Commissioning functions, the Class Instance Attribute editor, and the real time graphing function. Advanced: Provides access to the DeviceLogix™ editor, DeviceNet IO message timing information, ZIP configuration, and local input and output status display. Scanner: If the selected device is a DeviceNet scanner, provides access to simple scanner configuration values, and access to the scan list.
DeviceNet™ Configuration Terminal 1) Press the SEL key to select a bit to change.The selected bit name is displayed here Press the “<” (scroll left) or “>” (scroll right) to select the next bit 2) Press the Increment (or 0) or Decrement (or 1) key or to toggle the bit value Pressing the Enter key will write the new value to the selected device. When a parameter value is selected, pressing the ESC key will deselect the parameter value and allow you to move within the parameter list or group.
DeviceNet™ Configuration Terminal 193-CB1 Physical Connections 7 The 193-CB1 cable that ships with the Configuration Terminal has a plug connection to the terminal on one end, and color coded bare leads on the other end. The cable’s bare leads are wired to a DeviceNet connector according to the following table.
Publication 193-QR002A-EN-P - November 2006 PN 40754-657-01 Copyright ©2006 Rockwell Automation, Inc. All Rights Reserved. Printed in USA.
