Publication 1794-UM066A-EN-P - February 2012
Adapter Web Dialogs 67
–FCS Errors
– Single Collisions
–SQE Test Errors
– Deferred Transmissions
– Late Collisions
– Excessive Collisions
–MAC Transmit Errors
– Carrier Sense Errors
–Frame Too Long
– MAC Receive Errors
• Interface Counters
– In Octets
– In Ucast Packets
– In NUcast Packets
–In Discards
– In Errors
–In Unknown Protos
–Out Octets
– Out UCast Packets
– Out NUcast Packets
–Out Discards
–Out Errors

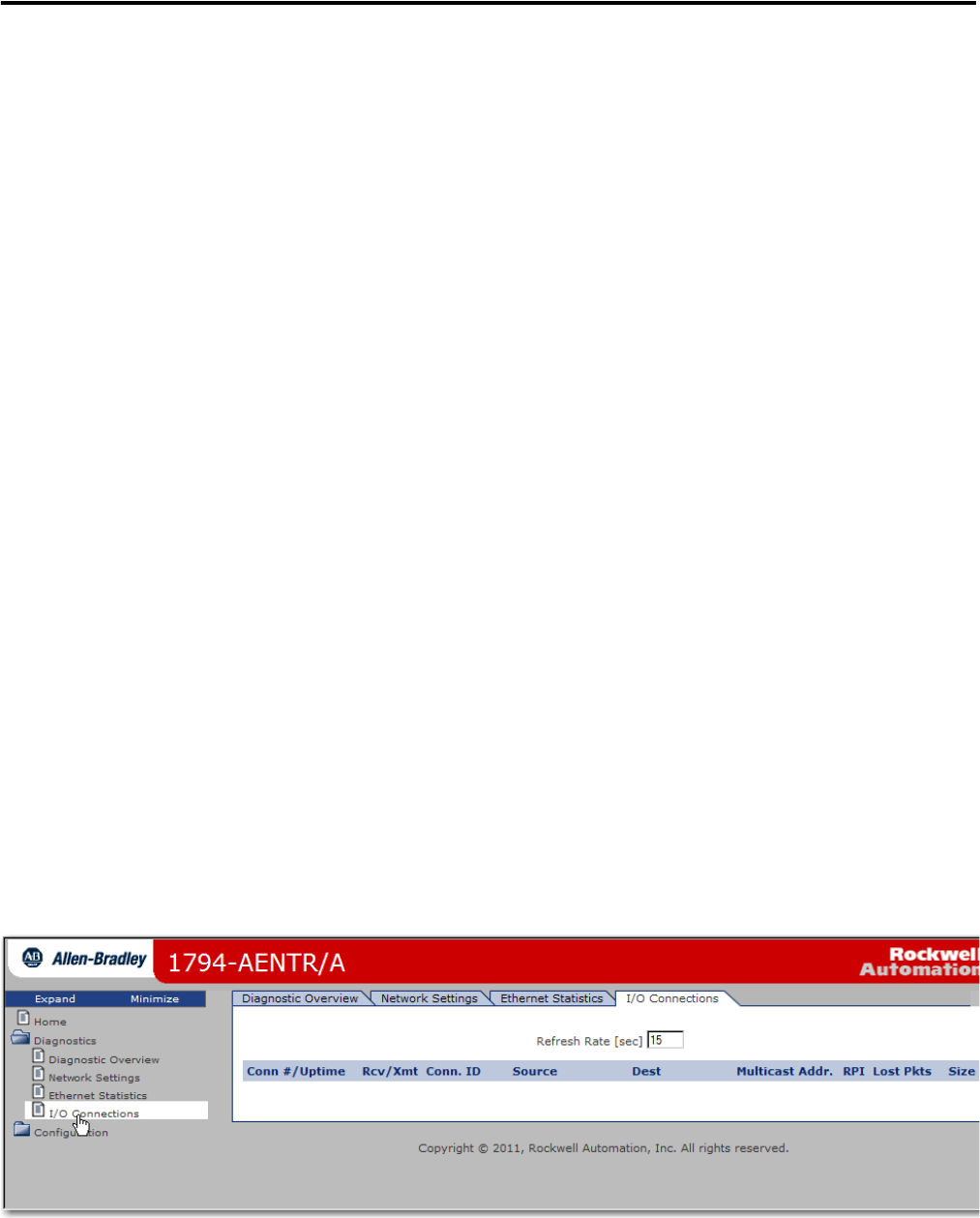

Use the I/O Connections Page
To use the I/O Connections page for CIP I/O (Class 1) connection information,
click I/O Connections tab at the top of the page or panel on the left.
The I/O Connections page opens.
From the I/O Connections page, view the following:
• Connection Number / Uptime
