Adapter Web Dialogs 65

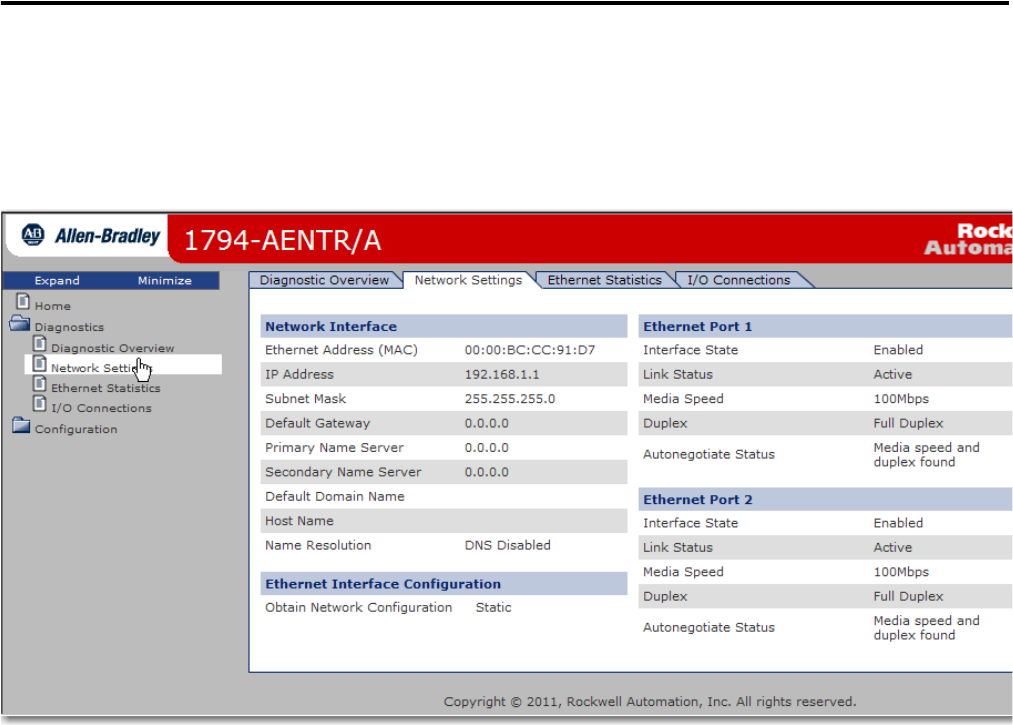

Use the Network Settings Page
To use the Network Settings page for network related information, click
Network Settings tab at the top of the page or panel on the left.
This opens the Network Settings page.
From the Network Settings page, you can view the following:
•Network Interface
– Ethernet Address (MAC)
–IP Address
–Subnet Mask
–Default Gateway
–Primary Name Server
–Secondary Name Server
–Default Domain Name
–Host Name
– Name Resolution
• Ethernet Interface Configuration
– Obtain Network Configuration
•Ethernet Port 1 and 2
–Interface State
–Link Status
– Media Speed
–Duplex
– Autonegotiate Status
