Publication 1794-UM066A-EN-P - February 2012
Adapter Web Dialogs 63

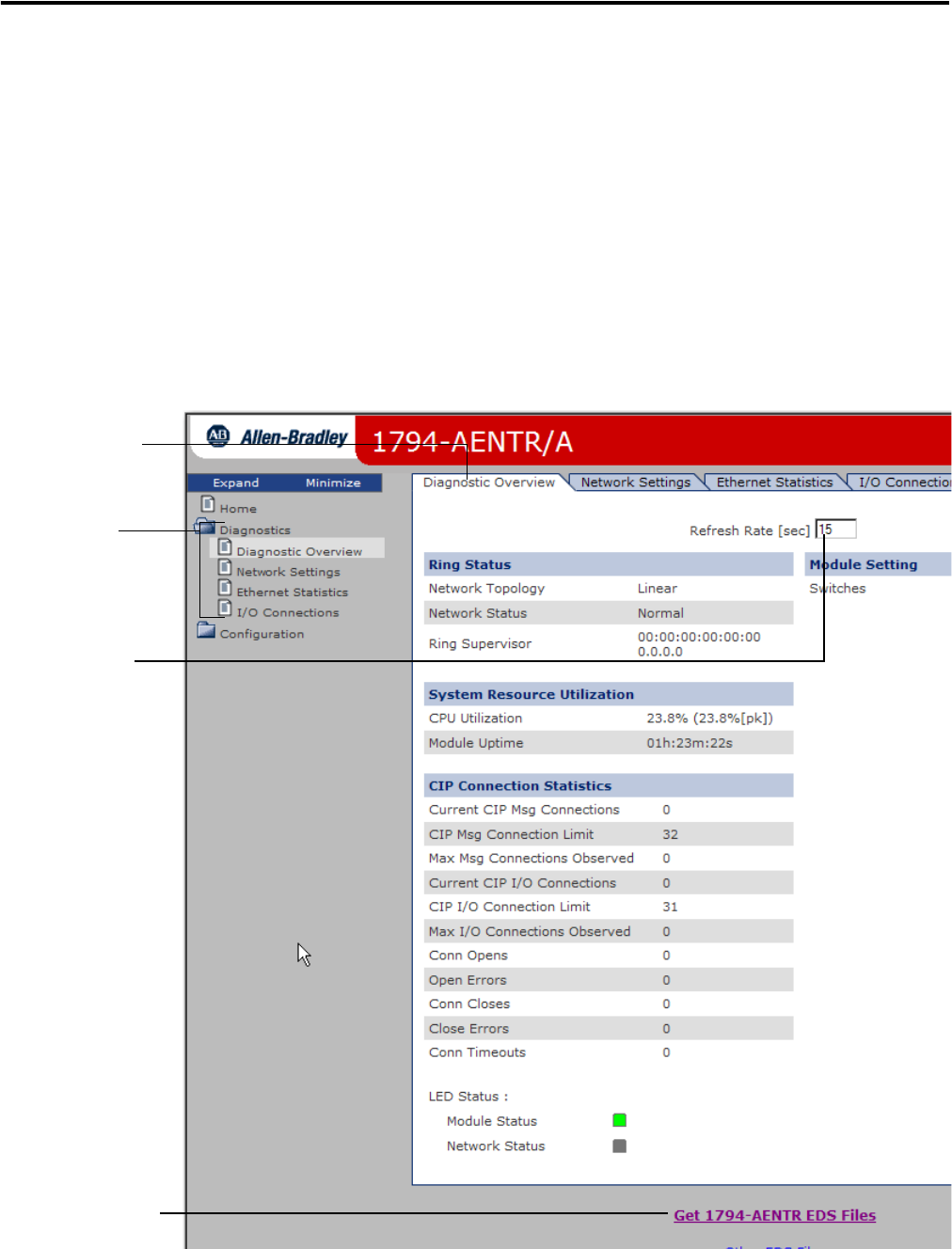

Work with the Diagnostics
Pages
To work with the Diagnostics options, follow these procedures.
1. From the Home page, click Diagnostics or Expand to see the following
diagnostics options from the panel at the left.
•Diagnostic Overview
•Network Settings
• Ethernet Statistics
•I/O Connections
2. In the Refresh Rate field, you can type a refresh rate, noting that the
default rate is 15 seconds.
3. From the panel at the left or tabs at the top of the page, click one of the
diagnostics options to see the corresponding page.
Click tabs to see the
corresponding page.
Type a refresh rate.
Click Diagnostics
options to see
corresponding pages
Download EDS files for
your adapter
