62 Adapter Web Dialogs
1. From your web browser, enter the adapter IP address to see the Home
page.
2. From the Home page, click Expand to show options, or minimize to see
Diagnostics and Configuration.
3. From the Home page, complete one of these, as desired.
• Click one of the following to access www.ab.com
.
– Allen-Bradley logo at the top of the page
– AB.com link under Resources on the right hand side of the page
• Click Rockwell Automation at the top right to go to
www.rockwellautomation.com
.
• Click the following to see additional diagnostics web pages.
– Diagnostics – Diagnostic overview, Network Settings, Ethernet
Statistics, I/O Connections
– Configuration – Identity, Network, Services

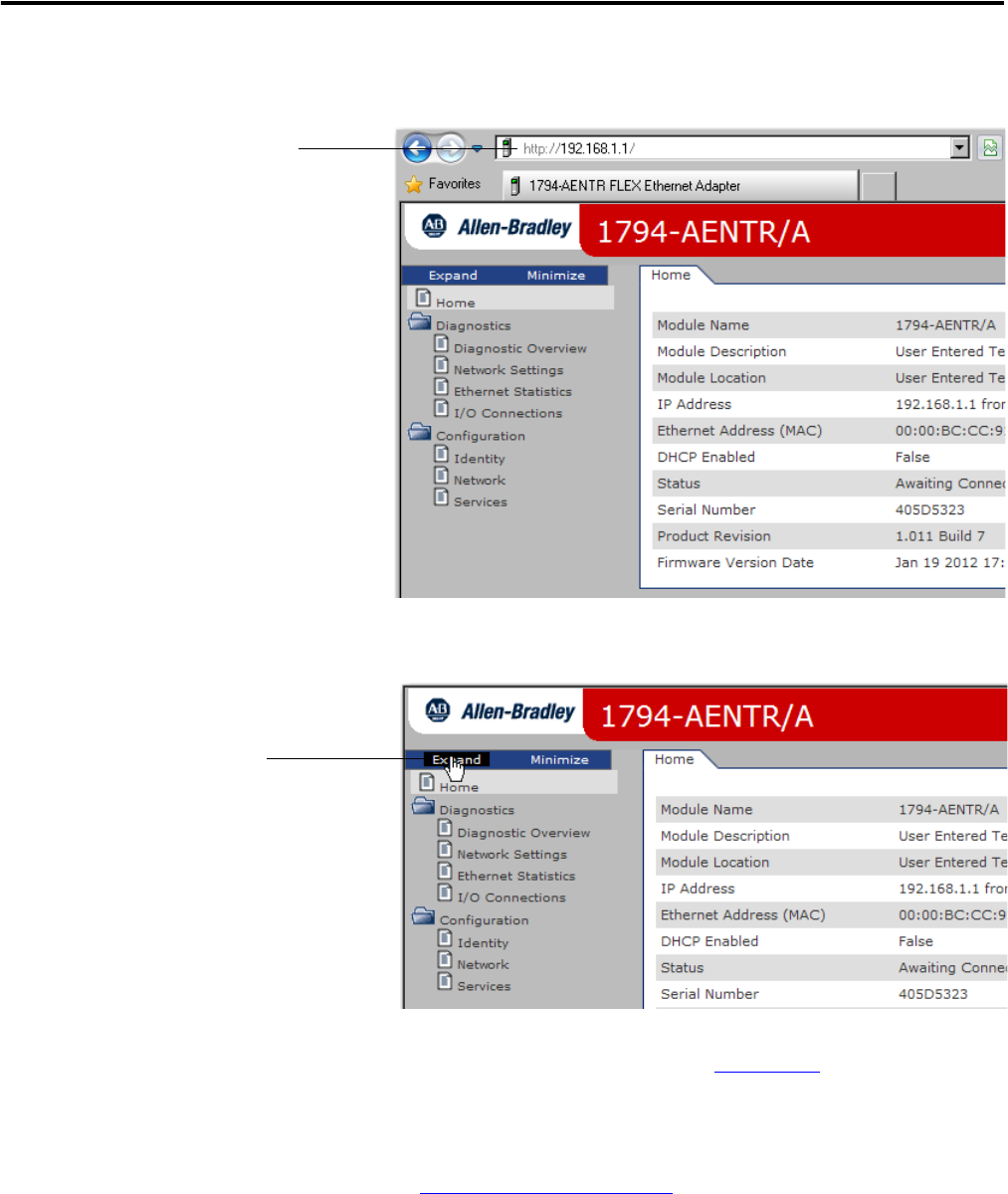

Enter the adapter IP address
to see the home page.
Click Expand to show
options.
