Publication 1794-UM066A-EN-P - February 2012
Configure the RSLinx Ethernet Communication Driver 59
7. When you are done entering the IP addresses, click Apply and then click
OK to close the Configure driver window.

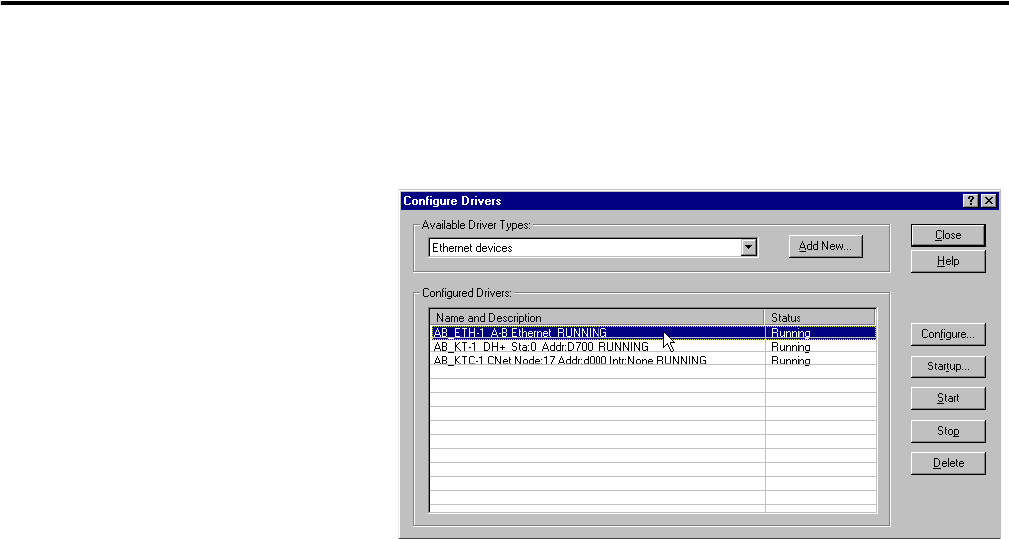

The new driver appears in the list of configured drivers. Your list displays
the drivers you have configured on your workstation.
8. Close RSLinx.
