51 Publication 1794-UM066A-EN-P - February 2012
Appendix
A
Interpret Status Indicators
Overview
The faceplates of the 1794-AENT and 1794-AENTRXT adapters are provided
with status indicators that display the Module Status, Network Status, and Link
Status for both links.
Status Indicators
1794-AENTR, 1794-AENTRXT Module
Use the following table to determine the indicator conditions and status.
Status Indicator Identification
Indicator State Status
Link 1 or Link 2 (individually) Off No link exists. Verify network cabling. Correct
as necessary.
Solid green Link exists at 100 Mbps.
Flashing green I/O is being transmitted or received at 100
Mbps.
Flashing yellow I/O is being transmitted or received at 10
Mbps.
Solid yellow Link exists at 10 Mbps.

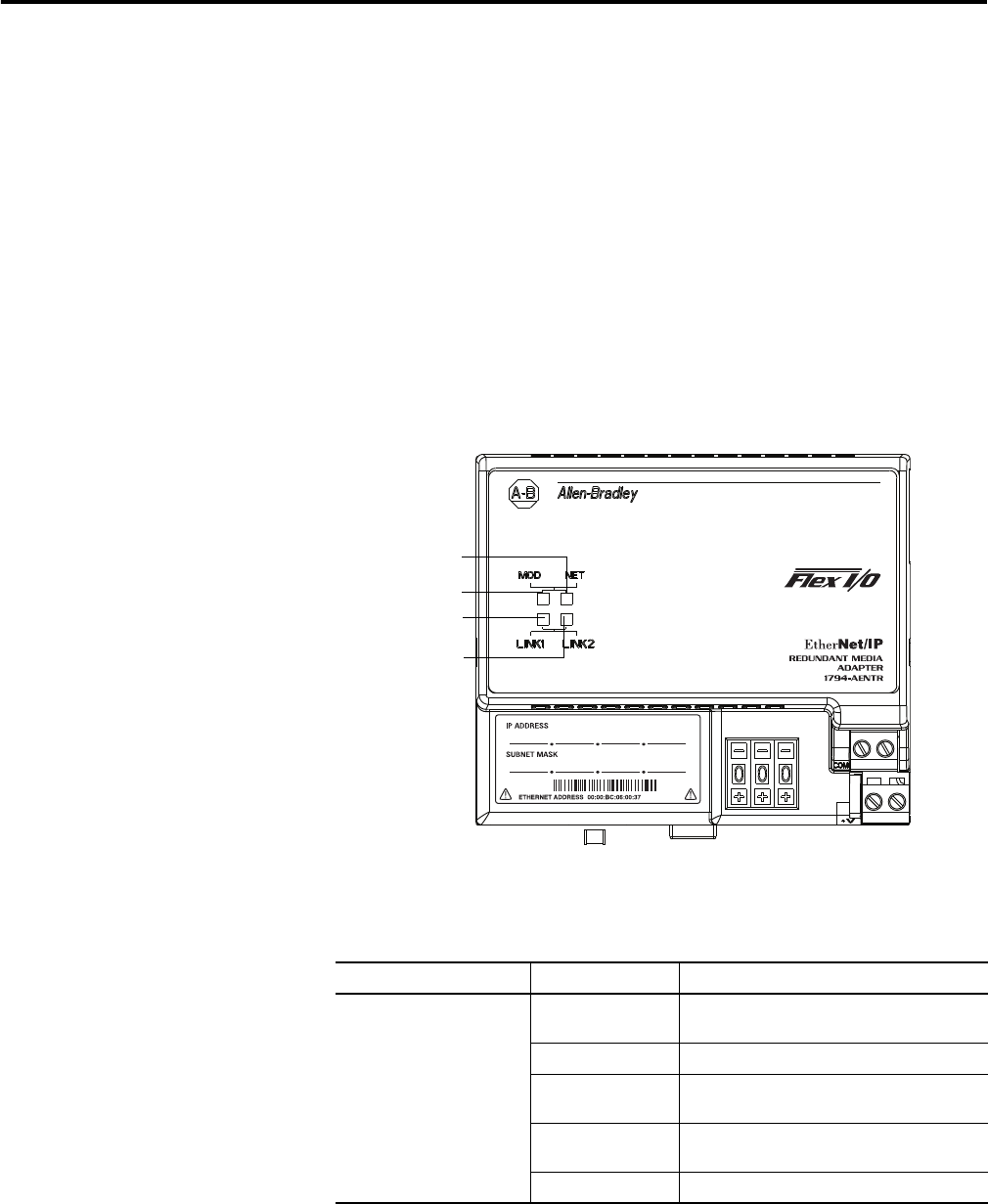

44560
Network status
Module status
Link 1 status
Link 2 status
1794-AENTR shown
