Publication 1794-UM066A-EN-P - February 2012
Analog I/O with Direct Connection 47

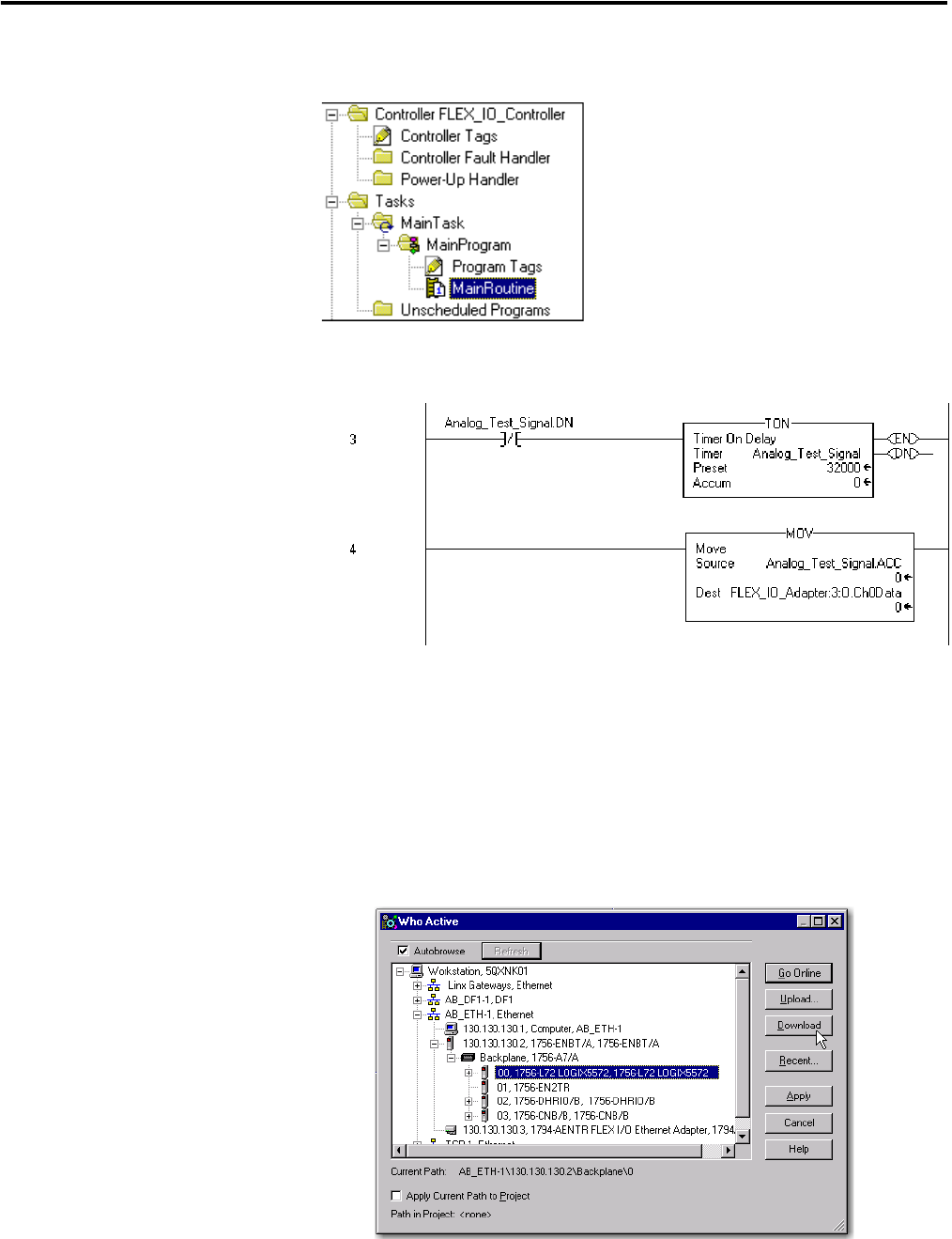

Modify the Ladder Program
Make the following change to the ladder program to test the new configuration.
2. Double-click Main Routine under the Main Program folder, and then add
rungs 3 and 4 to the ladder program.
3. Save the program.
Download the Program
To download the program to the controller do the following:
1. Click the Communications menu, and then select Who Active.
The Who Active window opens.
