Publication 1794-UM066A-EN-P - February 2012
44 Analog I/O with Direct Connection

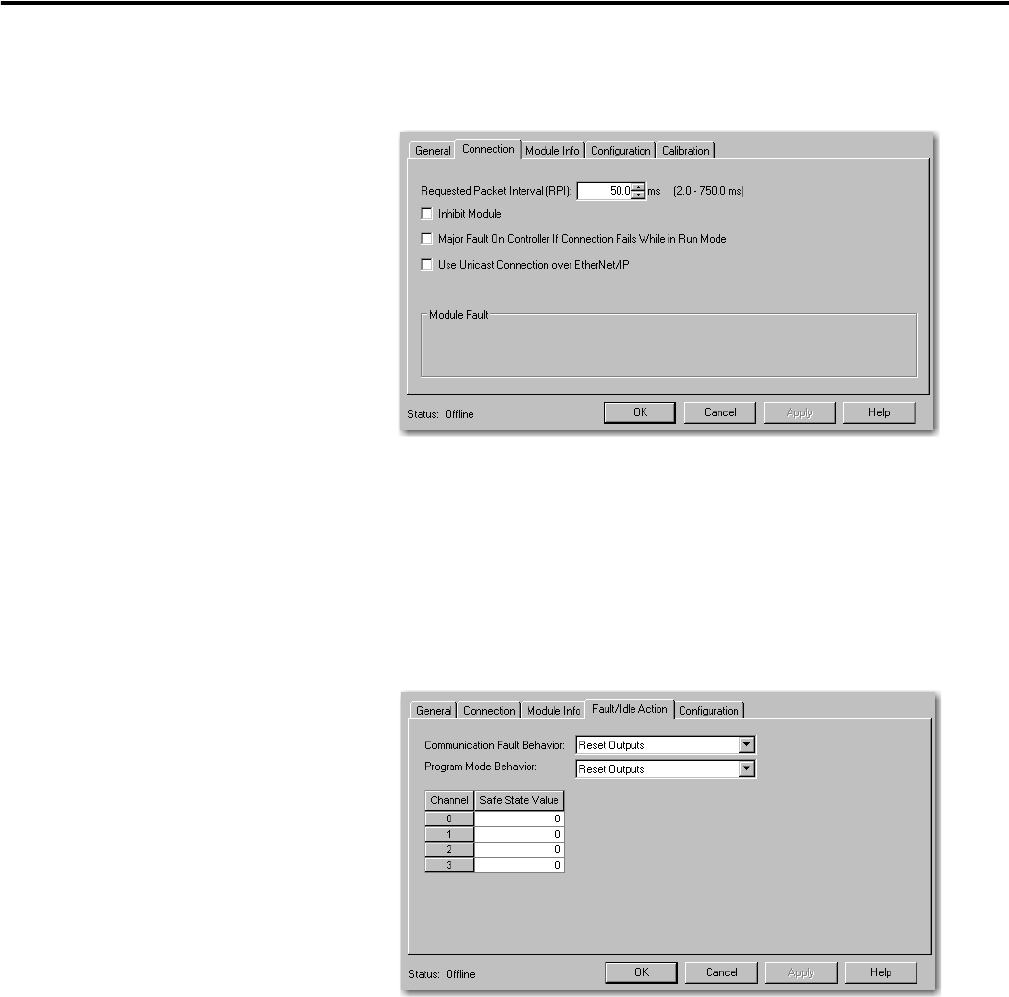

5. On the Connection tab, adjust the Requested Packet Interval (RPI) to
meet your system requirements.
For this example change the RPI to 50 ms rate.
This RPI is used for the direct connection to this analog module.
The two rack connected digital I/O modules continue to communicate at
the RPI of the rack connection.
6. Click Apply to save the configuration.
7. Click the Fault/Idle Action tab.
For this example, leave these parameters at the default setting.
For an explanation of these parameters click Help.
