Publication 1794-UM066A-EN-P - February 2012
40 Analog I/O with Direct Connection

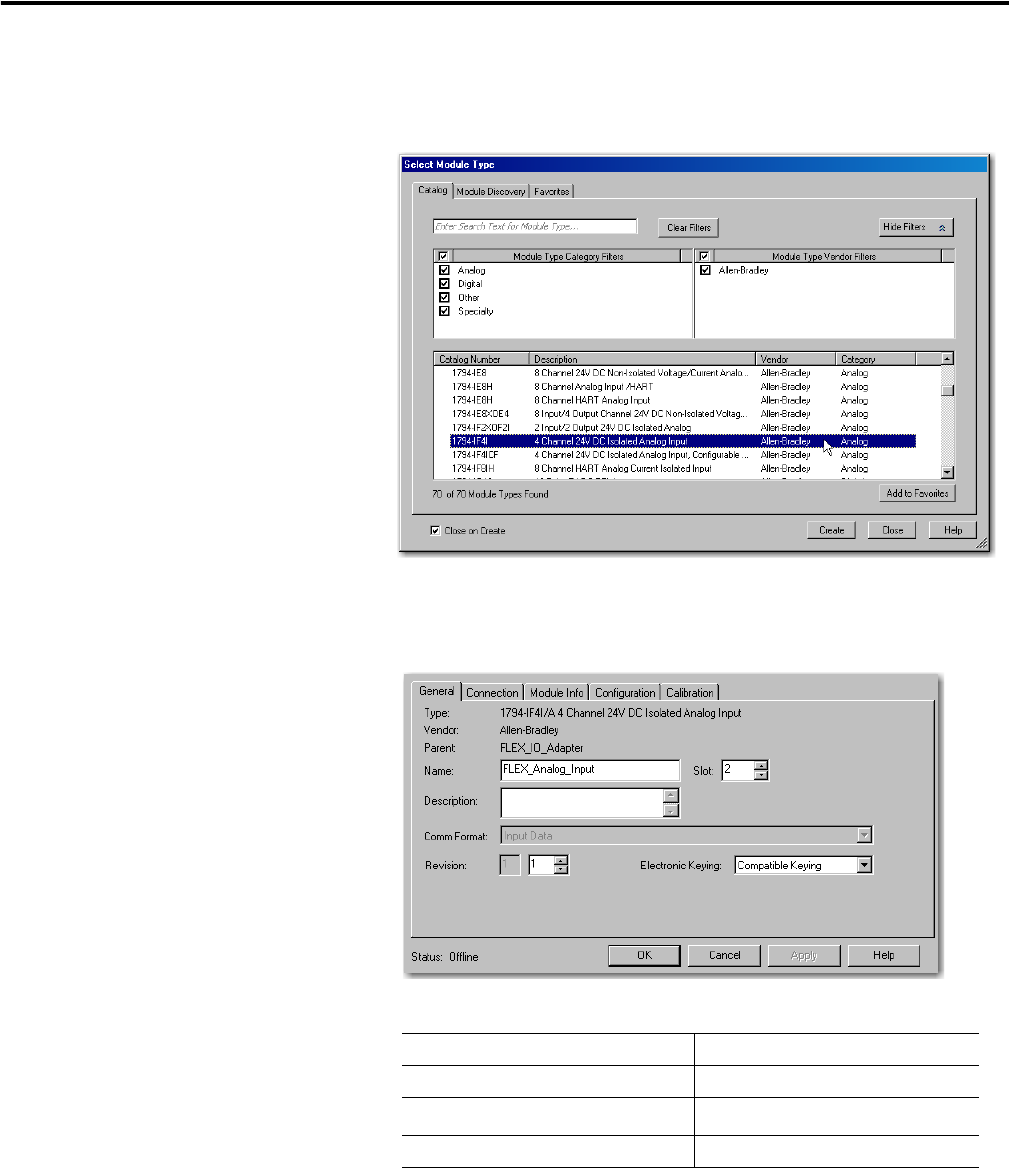

1. Right click the 1794-AENTR adapter under the I/O Configuration
folder, and then select New Module.
The Select Module Type window opens.
2. Select the 1794-IF4I/A analog input module from the list, and then
click Create.
The New Module dialog opens.
3. Enter the following parameters:
4. Click OK to save the configuration.
The Module Properties Report dialog opens.
Name FLEX_Analog_Input
Slot 3
Comm Format
Input Data
(1)
(1)
All analog Comm Formats use direct connection. The default here is Input Data.
Electronic Keying Compatible Module
