Publication 1794-UM066A-EN-P - February 2012

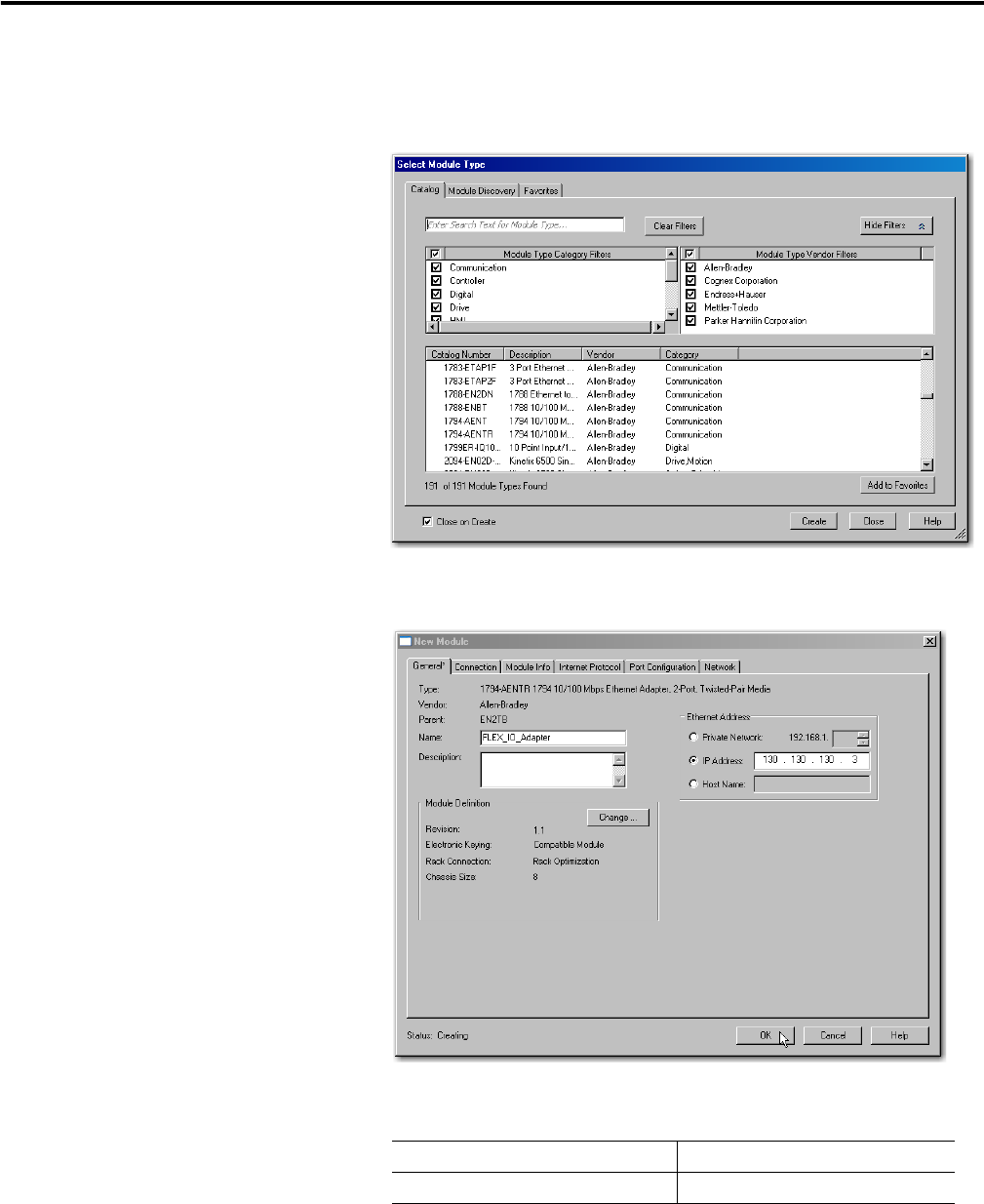

28 Rack Optimized Discrete I/O
1. In the Project dialog, right-click the local 1756-EN2TR module under the
I/O Configuration folder, and then select New Module.
The Select Module Type dialog opens.
2. Select the 1794-AENTR Ethernet adapter from the list and click Create.
The Module Properties dialog opens.
3. Specify the following parameters in the General tab of the New Module
dialog:
4. Verify that the Module Definition values are as follows:
Name FLEX_IO_Adapter
IP Address 130.130.130.3
