Installing Block I/O
Chapter 3
3๎5
Power Supply Requirements
An external 24V dc power supply is required to power the block. Total
current required to power the block is equal to 200mA plus an inrush of
5.5A for 10
ยตsec for each block. The supply must be able to source an
additional 100mA plus an inrush current of 400mA when a peripheral is
connected.
In addition, the external power supply should have current limiting
capabilities. The voltage range must not exceed 20.5โ27.6V dc.
Wiring Requirements
Wiring cable requirements are shown in the following table.

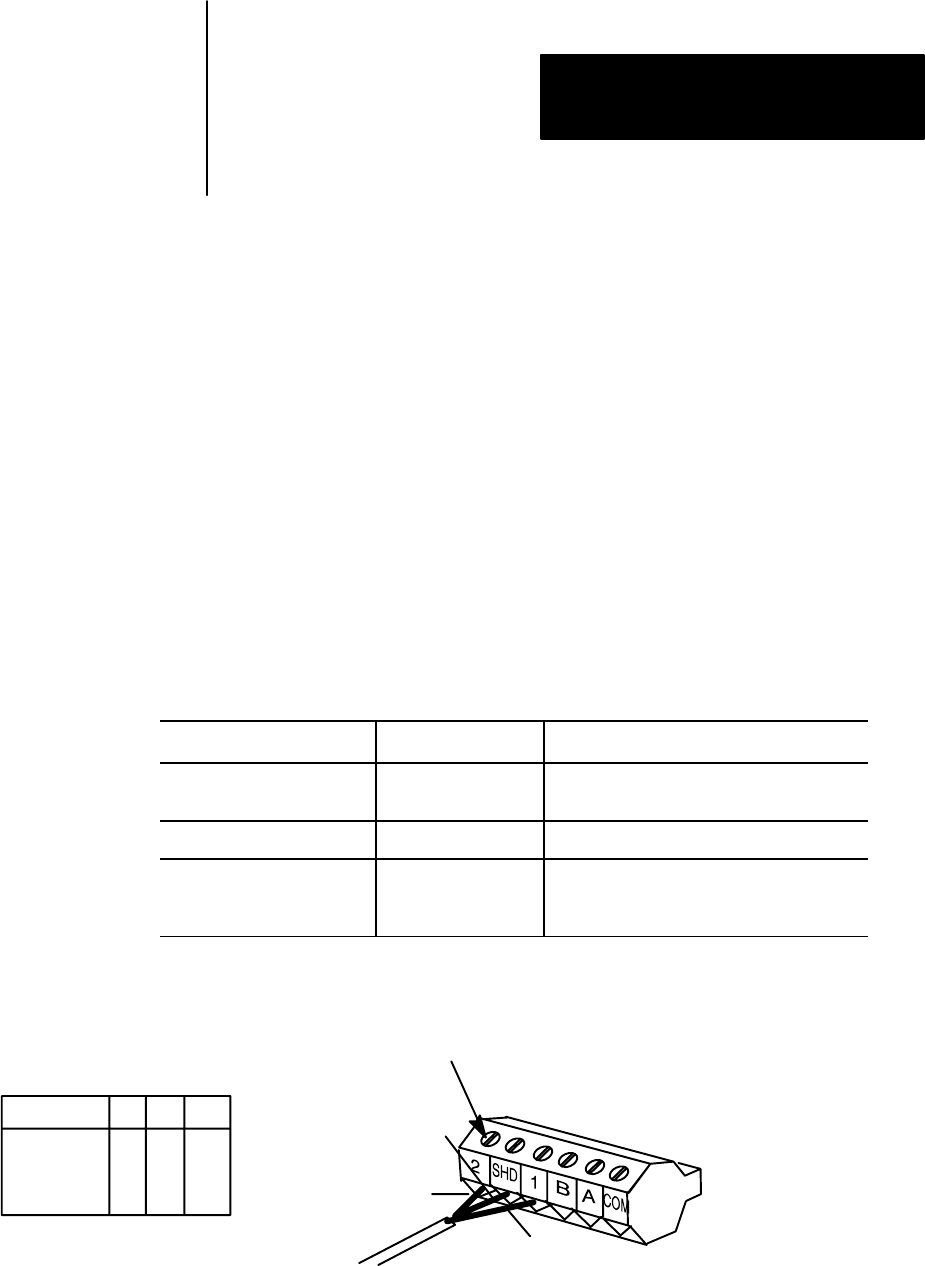

Table 3.C
Acceptable
W
iring Cables for Block I/O Connection
Use Cable Type With
Remote I/O Link or DIO Link Belden 9463 PLC-2, PLC-3, PLC-5 family programmable
controllers and SLC controllers
DH-485 Data Link Belden 9842 SLC controllers only
Input and Output wiring Up to 14AWG
Stranded with 3/64
inch insulation
All
Figure 3.5
Remote
I/O Link W
iring
T
ighten screw to clamp wire.
Blue
Clear
Shield
Connection 1 2 SHD
Clear wire X
Blue wire X
Shield wire X
10832-I
