ControlNet Modular Repeater Adapter 9
Rockwell Automation Publication 1786-IN013F-EN-P - April 2011

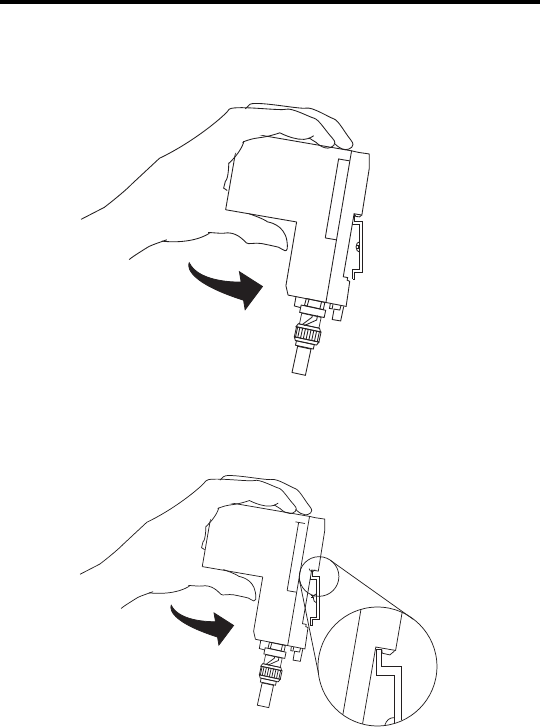

Do these steps to mount the 1786-RPA/B module.
1. Position the repeater adapter module on the 35 x 7.5 mm (1.4 x 0.3 in.)
DIN rail (Allen-Bradley part number 199-DR1) at a 30
o
angle.
2. Hook the lip on the rear of the 1786-RPA/B repeater adapter module
onto the top of the DIN rail, and rotate the repeater adapter module
onto the rail.
3. Press the repeater adapter module down onto the DIN rail until flush.
The locking tab should snap into position and lock the repeater adapter
module to the DIN rail.
31454A-M
31454B-M
